EP-600PM Technical Specifications

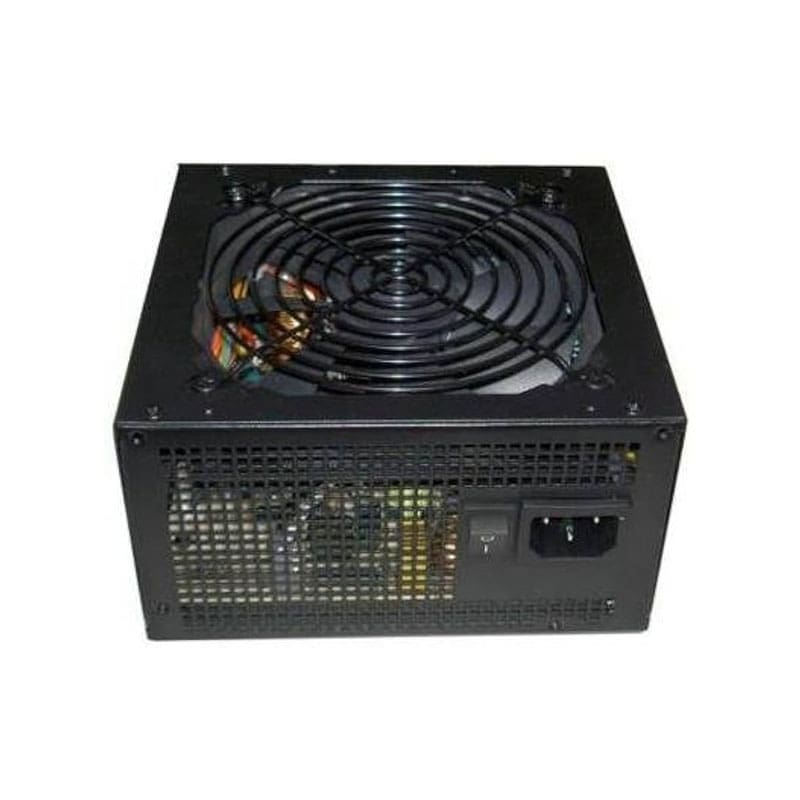

EPower Technology 600W ATX12V 2.3 Single 120 MM Cooling Fan Bare Power Supply
Brand Name: Epower
Manufacturer: Epower
Condition: New
Product Type: Power Supply
Weight: 5.000000
Maximum Power: 600W
Input:
Input Voltage: 115 ~ 230 V
Input Frequency Range: 50/60Hz
Input Current: 10 ~ 6 A
Output: +3.3V @ 24A, +5V @ 24A, +12V1 @ 20A, +12V2 @ 20A, -12V @ 0.5A, +5VSB @ 2.5A
Approvals: UL, FCC
Form Factor: ATX12V 2.3
Dimensions (WxLxH): 6.0 x 5.5 x 3.3 inch / 150.0 x 140.0 x 85.0 mm
Approvals: UL, FCC
Connectors: 1x 20+4pin Main Power Connector,1x 4+4Pin ATX Power Connector, 1x 6pin PCI-Express Connector, 1x 6+2 pin PCI-Express Connector,6x SATA Connectors, 6x 4pin Molex Connectors,2x FDD Connectors
