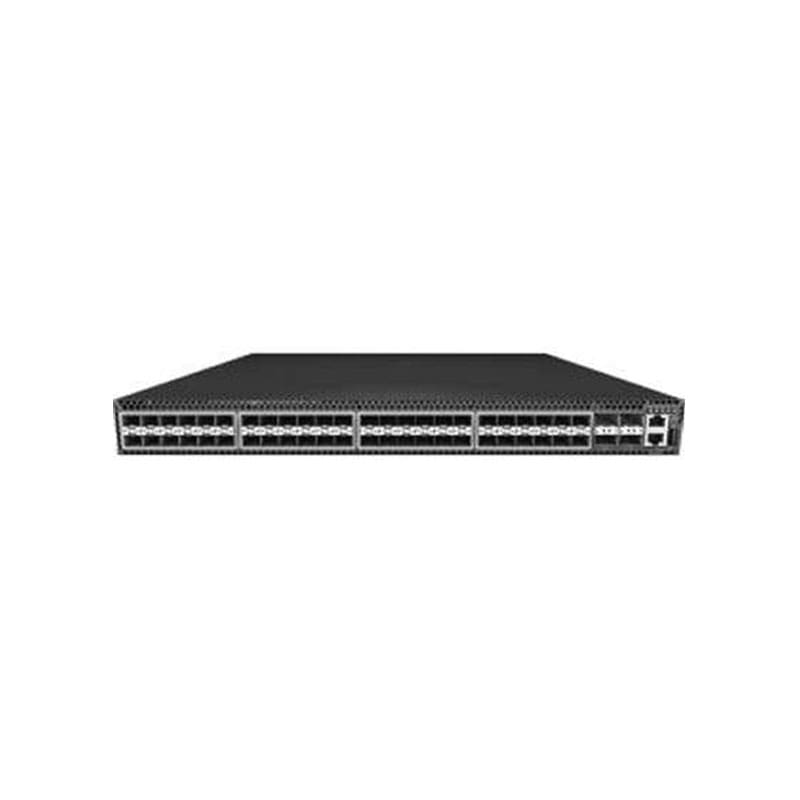

ECS5610-52S Technical Specifications
Edgecore Network 52PORT 10GBE SFP+ and 4 Ports Of 40GBE QSFP+
Product Type: Layer 3 Switch
Manageable: Yes
Ethernet Technology; 10 Gigabit Ethernet, 40 Gigabit Ethernet
Number of Total Expansion Slots: 52
Stack Port: No
Media Type Supported: Optical Fiber
Expansion Slot Type; SFP+, QSFP+
Form Factor: Rack-mountable
Power Source: Power Supply
Layer Supported: 3
Compatible Rack Unit: 1U
Number of SFP+ Slots: 48
Modular: Yes
Uplink Port: Yes
Port / Expansion Slot Details: 48 x 10 Gigabit Ethernet Expansion Slot, 4 x 40 Gigabit Ethernet Expansion Slot
Height: 1.7″
Width: 18.5″
Depth: 17.3″
Product Model: ECS5610-52S
Network Technology: 10GBase-X, 40GBase-X
