E810CQDA2OCPV3 Technical Specifications

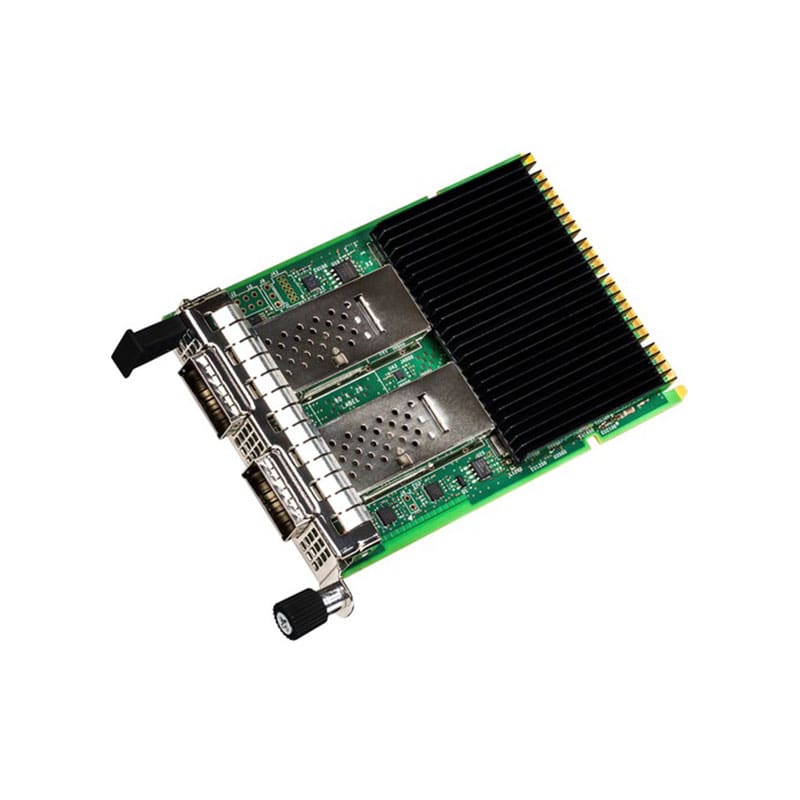

Intel Ethernet Network Adapter E810-CQDA2 Network Adapter OCP 3.0 QSFP28 x 2
Brand: Intel
Product Line: Intel Ethernet Network Adapter
Model: E810-CQDA2
Manufacturer: Intel
Network & Communication
Compliant Standards: IEEE 802.1p, OCP 3.0
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet
Form Factor: Plug-in card
Host Interface: Open Compute Project mezzanine (OCP) 3.0
PCI Specification Revision: PCIe 3.0, PCIe 4.0
Product Type: Network adapter
Remote Management: RMON, SNMP
Connectivity
Interface Provided: 2 x 100Gb Ethernet – QSFP28
Port Quantity: 2
Network & Adapter Ports: QSFP28
Technical Information
Max Operating Temperature: 149 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 90% (non-condensing)
Product Information
Packaged Quantity: 1
Dimensions & Weight
Height: 3 inch
Depth: 4.5 inch
Physical Characteristics
Color Category: Green
