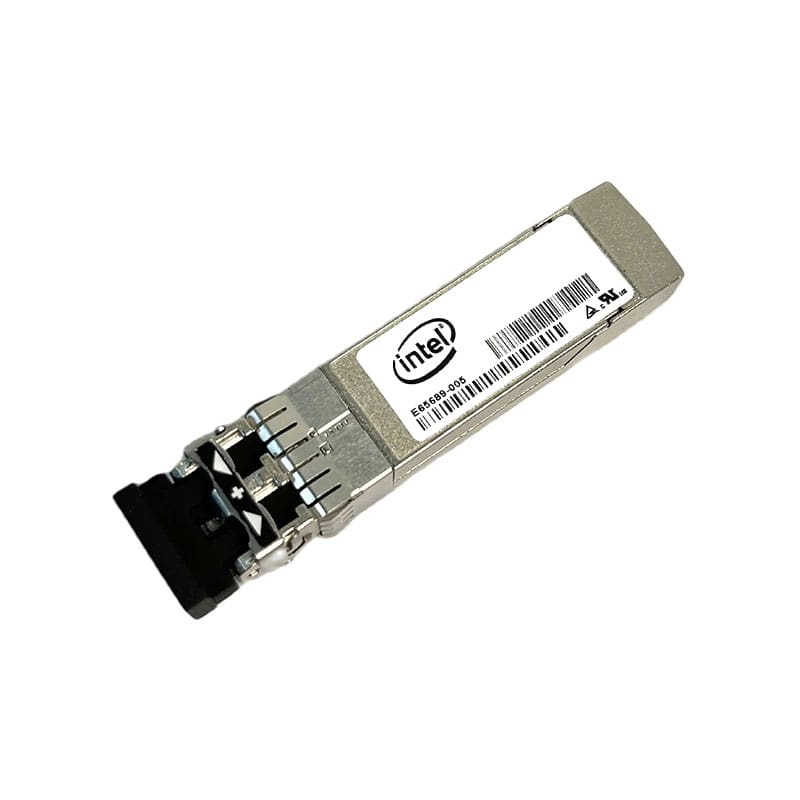

E65689-005 Technical Specification
Intel 1G/10G 850nm Multimode Datacom SFP+ Transceiver
Hot-pluggable Sfp+ Footprint
Supports Rate Selectable 1.25 Gb/s Or 9.95 To 10.3 Gb/s Bit Rates
Power Dissipation < 1w
Rohs-6 Compliant (lead-free)
Single 3.3vpower Supply
Maximum Link Length Of 400m On Om4 Mmf
Uncooled 850nm Vcsel Laser
Receiver Limiting Electrical Interface
Duplex Lc Connector
Built-in Digital Diagnostic Functions
commercial Temperature Range: -5°c To 70°c
Type / device type: Transceiver modules
Form factor: Plug-in module SFP+
Data link protocol: Fiber Channel, 10GbE,
Interfaces / interfaces: LC duplex
Data Transfer Rate / data transfer rate: Max. 10.5 Gbps
Range / range: 300 m on 50/125µm MMF
Wavelength / wavelength: 850nm VCSEL laser
