E63268-01 Technical Specifications

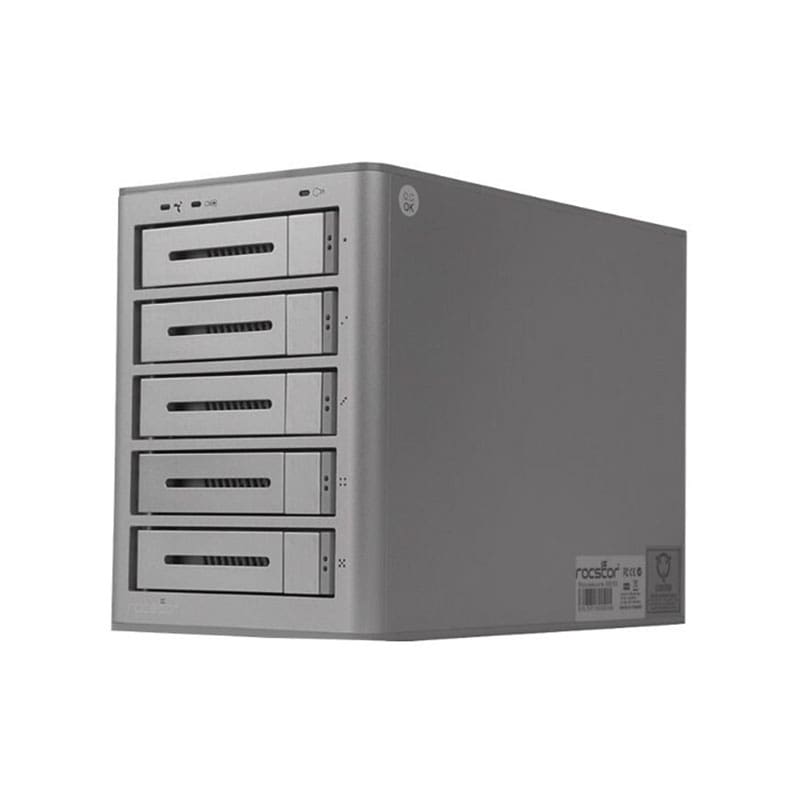

Rocstor Rocsecure DE52 – Hard Drive Array
Brand Rocstor
Product Line Rocstor Rocsecure
Model DE52
Manufacturer Rocstor
Storage
Hard Drive Capacity 12 TB
Hard Drive Type HDD
Hot-Swap
Hot-swap
Installed Quantity 5
Optical Drive Type None
RAID Levels
JBOD, RAID 0, RAID 1, RAID 10, RAID 5
Spindle Speed (rpm)
7200 revolutions per minute
Storage Controller Type RAID
Expansion Slots
Expansion Bays 5 (total) / 0 (free) x hot-swap – 2.5″ / 3.5″ shared
Connectivity
Interface Provided 1 x eSATA, 1 x USB 3.0, 2 x Thunderbolt 2
Power
Power Supplies Installed 1
Technical Information
Storage Controller Interface Serial ATA-600
Max Operating Temperature 40 degree Celsius
Min Operating Temperature 0 degree Celsius
Operating Humidity 5 – 95% (non-condensing)
Operating System Required
Apple MacOS X 10.8.5 or later, Apple OS X 10.8.5 Mountain Lion or later
Supported Devices 5
Product Information
Features Anti-theft stand lock slot, On/off switch
Installed Devices/Modules 5
Packaged Quantity 1
Product Type Hard drive array
Included Items
Included Accessories Rocpro T24 Raid System Unit
Dimensions & Weight
Height 16.6 centimetre
Weight 3.92 kilogram
Width 12.4 centimetre
Depth 24.8 centimetre
