E-2278G Technical Specifications

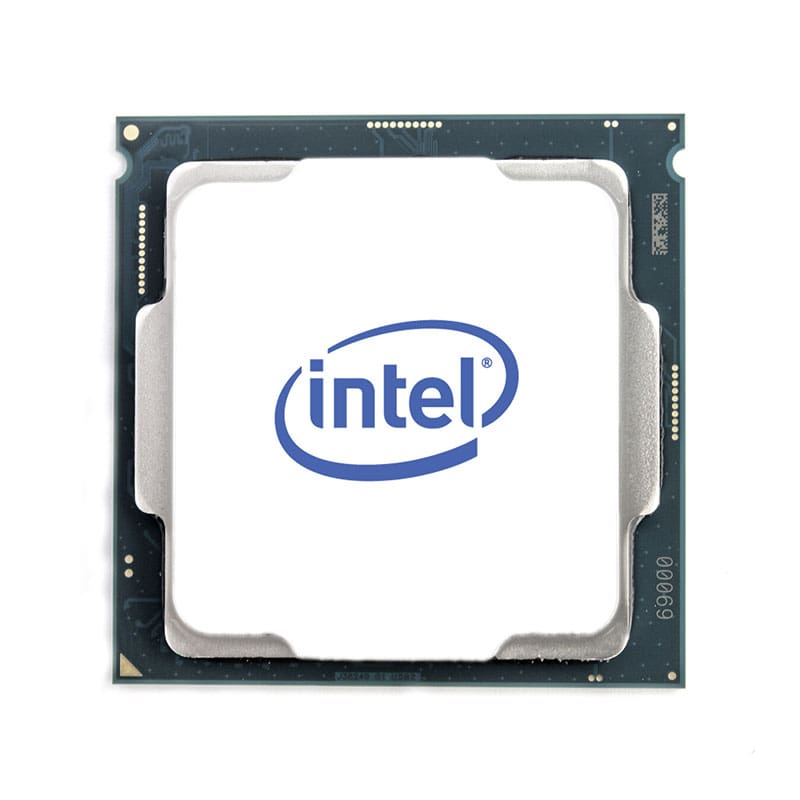

Intel Xeon E 8-Core 3.40GHz 16MB L3 Cache Socket FCLGA1151 Processor
Brand: Intel
Processor Type: Server
Series: Xeon E Processor
Core Model Type/ProcNo.: E-2278G
Processor Code Name: Coffee Lake
Core Stepping: R0
Manufacturing Technology: 14 nm
# of Cores: 8
# of Threads: 16
Clock Speed: 3.40 GHz
Max Turbo Frequency: 5.00 GHz
L3 Cache Size: 16 MB
Front Side Bus / QuickPath Interconnect: 8.00 GT/s
Thermal Power: 80 Watts
Max Memory Size: 128 GB
Memory Types: DDR4-2666
Memory Channels: 2
ECC Memory Supported: Yes
CPU Socket Type: LGA 1151
Max CPU Configuration: 1
TJUNCTION: 100 °C
Package Size: 37.5 mm x 37.5 mm
TCASE: 73 °C
Processor Graphics: Intel UHD Graphics P630
Graphics Base Frequency: 350 MHz
Graphics Max Dynamic Frequency: 1.20
Graphics Video Max Memory: 128 GB
4K Support: Yes, at 60Hz
Max Resolution (HDMI 1.4): 4096 x 2160 @ 24Hz
Max Resolution (HDMI): 4096 x 2304 @ 60Hz
Max Resolution (eDP – Integrated Flat Panel): 4096 x 2304 @ 60Hz
DirectX Support: 12
OpenGL Support: 4.5
Intel Quick Sync Video: Yes
Intel InTru 3D Technology: Yes
Intel Clear Video HD Technology: Yes
Intel Clear Video Technology: Yes
# of Displays Supported: 3
Device ID: 0x3E9A
Embedded Options Available: No
Scalability: 1S
PCI Express: 3.0
PCI Express Configurations: 1 x16, 1×8+2×4, 2 x8
Max # of PCI Express Lanes: 16
