DUAL-RX580-O4G Technical Specifications

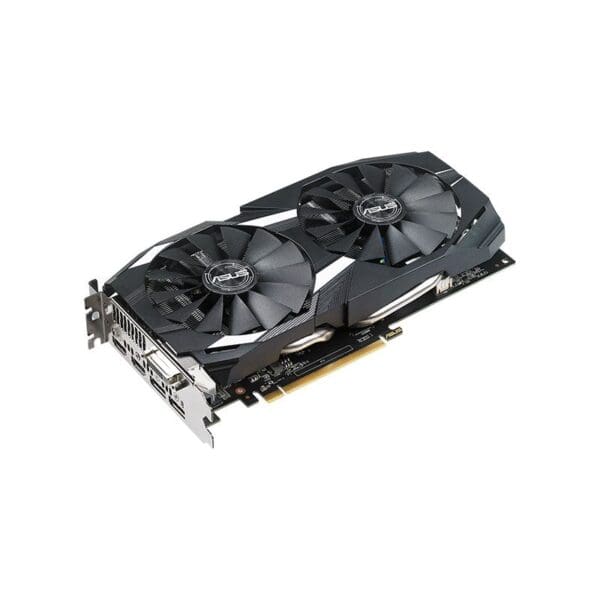

ASUS Dual OC Radeon RX 580 Graphics Card
GPU
GPU Model AMD Radeon RX 580
Stream Processors 2304
Boost Clock Speed Gaming Mode: 1360 MHz
OC Mode: 1380 MHz
Interface PCI Express 3.0 x16
Supported APIs DirectX: 12
OpenGL: 4.5
Vulkan
Memory
Memory Speed 7 Gb/s
Memory Configuration 4 GB
Memory Interface GDDR5
Memory Interface Width 256-Bit
Memory Bandwidth 256 GB/s
Display Support
Display Connectors 1 x DVI-D DL
2 x DisplayPort 1.4
2 x HDMI 2.0
Maximum Digital Resolution 7680 x 4320
Power Requirements
Max Power Consumption 185 W
PCI Power Connectors 1 x 8-Pin
