DS9308-SR4U2100AZE Technical Specifications

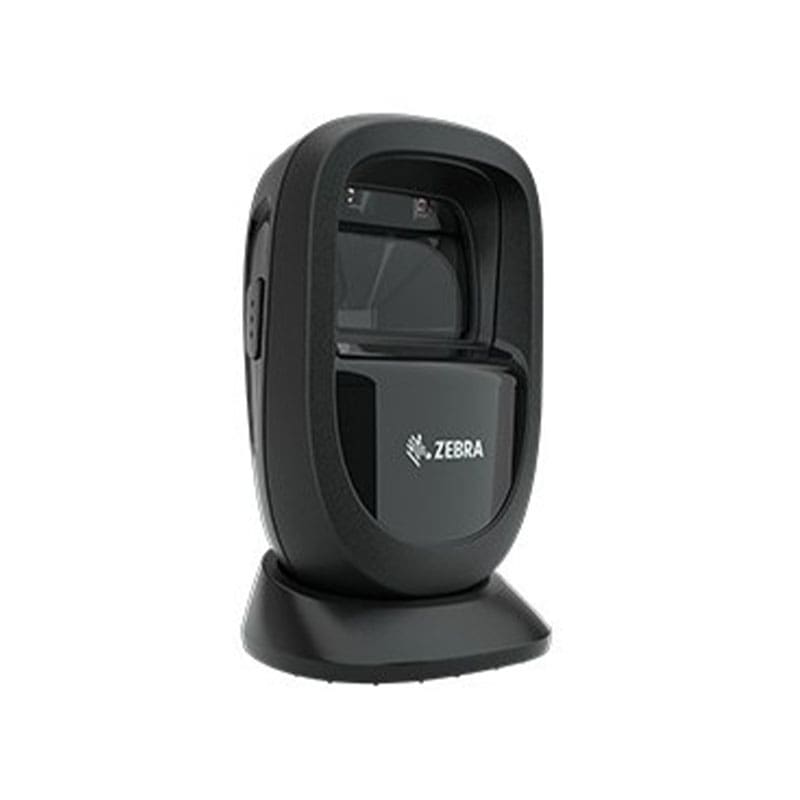

Zebra DS9308 Presentation Barcode Scanner
Manufacturer: Zebra
Brand: Zebra
Type: Barcode scanner desktop
Interface Type: USB
Barcode
Minimum Bar Width: 3 mil
Scan Element Type: 2D imager – Red LED
Sensor Resolution: 1280 x 800
Light Source Wave Length: 617 nm
Scan Mode: Single-pass
Scan Speed: 3050 mm / sec
TTL Decoding: Decoded
Connectivity Technology: Wired
OK Notification: Beeper, LED indicator
Expansion / Connectivity
Interfaces: 1 x USB
Miscellaneous
Cables Included: 1 x USB cable – external
Power
Power Device: Power adapter
Electric Current Required: 135 mA (standby), 335 mA (typical)
Dimensions & Weight
Width: 8.6 cm
Depth: 8.3 cm
Height: 14.5 cm
Weight: 318 g
Environmental Parameters
Min Operating Temperature: 0 °C
Max Operating Temperature: 50 °C
Humidity Range Operating: 5 – 95% (non-condensing)
Drop Specification: 1.5 m to concrete
