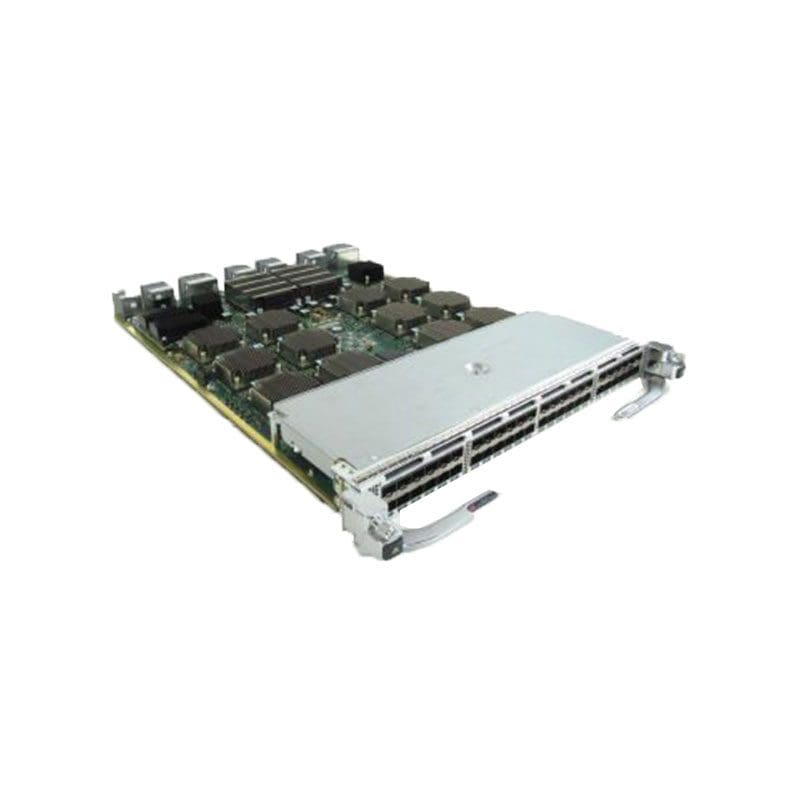

Refurbished DS-X9824-960K9 Technical Specification
Cisco MDS 9700 Module Switch 24 Ports
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco MDS
Model :9700 Module
Packaged Quantity :1
Networking
Type :Switch
Subcategory :Fibre Channel and SAN
Subtype :Fibre Channel
Form Factor :Plug-in module
Ports Qty :24
Fibre Channel :FAIS, FAIS-2, FC-BB-2, FC-BB-3, FC-BB-4, FC-BB-5, FC-DA, FC-FLA, FC-FS, FC-FS-2, FC-FS-3, FC-GS-3, FC-GS-4, FC-GS-5, FC-GS-6, FC-IFR, FC-LS, FC-LS-2, FC-MI, FC-MI-2, FCP, FCP-2, FCP-3, FCP-4, FC-PLDA, FC-SB-2, FC-SB-3, FC-SB-4, FC-SP, FC-SW-2, FC-SW-3, FC-SW-4, FC-SW-5, FC-Tape, FC-VI
Manageable :Yes
Remote Management Protocol :CLI, SFTP, SMI-S, SNMP 3, SSH-2
Status Indicators :Status
Features :Access Control List (ACL) support, Authentication, Authorization and Accounting (AAA), Cisco Inter-Switch Link (ISL), Class of Service (CoS), Converged Enhanced Ethernet (CEE), Data Center Bridging Exchange (DCBX) support, Fabric-Device Management Interface (FDMI), FCoE Initialization Protocol (FIP), Fibre Channel Forwarder (FCF), Port Security, Power-on self-test (POST), Priority-Based Flow Control (PFC), Quality of Service (QoS), Role-Based Access Control (RBAC), Syslog support, Transparent (N_Port ID Virtualization – NPIV) mode support, Trunking
Compliant Standards :IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.3
Ports
Qty :24
Interface Provided
Interfaces :1 x management (Gigabit LAN) RJ-45, 1 x serial (RS-232) management, 1 x serial DB-9, 24 x QSFP+
Power Device
Power Consumption Operational :680 watt
Miscellaneous
Color Category :Gray
Encryption Algorithm :AES
Authentication Method :Secure Shell v.2 (SSH2), TACACS+
Compliant Standards :21 CFR 1040, AS/NZS 3260, AS/NZS 3548 Class A, CAN/CSA C22.2 No. 60950, CISPR 22 Class A, CISPR 24, CNS 13438 Class A, EN 300 386, EN 55022 Class A, EN 60825, EN 60950, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN50082-1, EN55024, FCC CFR47 Part 15 A, ICES-003 Class A, IEC 60825, IEC 60950, KN22 Class A, TS001, UL 60950, VCCI Class A
Dimensions & Weight
Width :15.9 inch
Depth :21.8 inch
Height :1.7 inch
Weight :17 lbs
