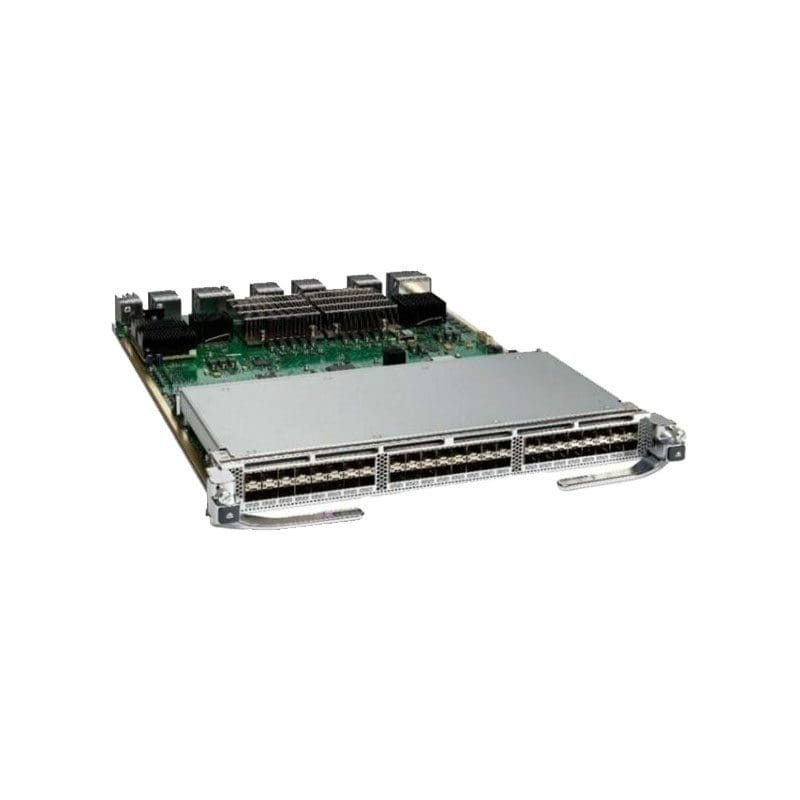

Refurbished DS-X9648-1536K9 Technical Specification
Cisco MDS 9700 Module Switch 48 Ports
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco MDS
Model :9700 Module
Packaged Quantity :1
Networking
Type :Switch
Subcategory :Fibre Channel and SAN
Subtype :Fibre Channel
Form Factor :Plug-in module
Ports Qty :48
Fibre Channel :FAIS, FAIS-2, FC-BB-2, FC-BB-3, FC-BB-4, FC-BB-5, FC-DA, FC-FS, FC-FS-2, FC-FS-3, FC-GS-3, FC-GS-4, FC-GS-5, FC-GS-6, FC-IFR, FC-LS, FC-LS-2, FC-MI, FC-MI-2, FCP, FCP-2, FCP-3, FCP-4, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PI-2, FC-PI-3, FC-PI-4, FC-PI-5, FC-PLDA, FC-SB-2, FC-SB-3, FC-SB-4, FC-SP, FC-SP-2, FC-SW, FC-SW-2, FC-SW-3, FC-SW-4, FC-SW-5, FC-Tape, FC-VI
Manageable :Yes
Remote Management Protocol :CLI, SFTP, SNMP 3, SSH-2
Status Indicators :Status
Features :Access Control List (ACL) support, Quality of Service (QoS), Registered State Change Notification (RSCN) support, Remote Switch Port Analyzer (RSPAN), Syslog support, Virtual Route Redundancy Protocol (VRRP) support
Ports
Qty :48
Interface Provided
Interfaces :1 x serial (RS-232), 48 x
Miscellaneous
Color Category :Gray
Encryption Algorithm :128-bit AES
Authentication Method :RADIUS, Secure Shell (SSH), TACACS
Compliant Standards :AS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1 Second Edition, EMC, EN 300 386, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN300-386, EN55022 Class A, EN55024, GB 4943, ICES-003 Class A, IEC 60950-1 Second Edition, UL 60950-1 Second Edition, VCCI Class A
Dimensions & Weight
Width :15.9 inch
Depth :21.8 inch
Height :1.7 inch
Weight :17.5 lbs
