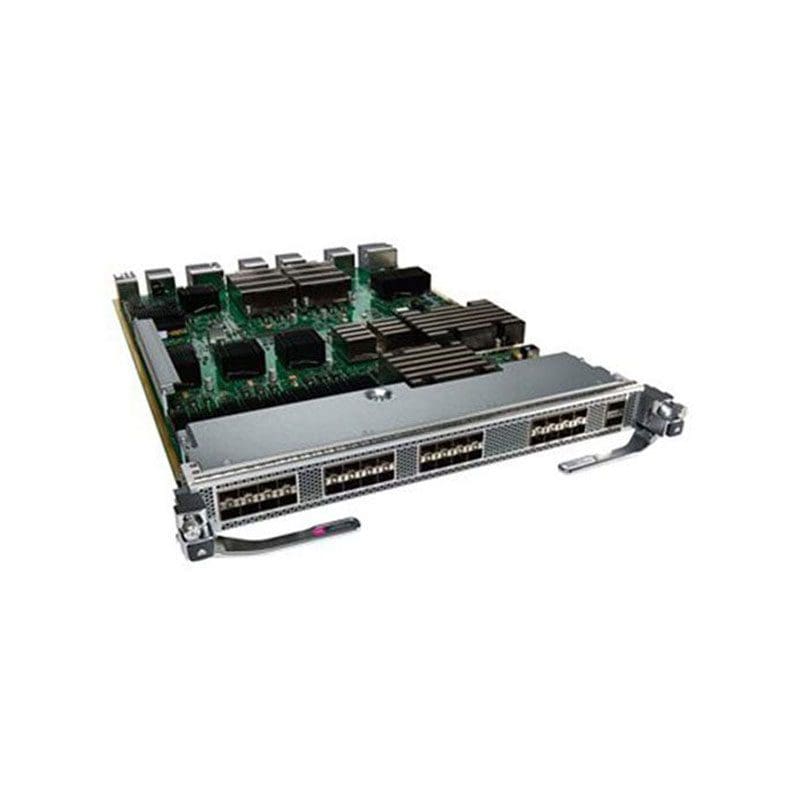

DS-X9334-K9 Technical Specification
Cisco MDS 9000 SAN Extension Module
General
Device Type Expansion module
Form Factor Plug-in module
Networking
Ports 16Gb Fibre Channel x 24 + 10Gb FCoE x 8
Connectivity Technology Wired
Cabling Type Fibre Channel
Data Link Protocol 10Gb Fibre Channel over Ethernet (FCoE), 16Gb Fibre Channel
Fibre Channel FC-DA, FC-FLA, FC-FS, FC-GS-3, FC-GS-4, FC-MI, FC-PH, FC-PI, FC-PLDA, FC-SB-2, FC-SB-3, FC-SW-2, FC-SW-3, FC-Tape, FC-VI, FC-SP, FCP-4, FC-BB-2, FCP, FCP-2, FC-PI-2, FC-BB-5, FC-BB-3, FC-FS-2, FC-GS-5, FC-SW-4, FCP-3, FC-LS, FC-MI-2, FC-PI-4, FC-FS-3, FC-GS-6, FC-PI-3, FC-SW-5, FC-BB-4, FC-IFR, FAIS, FAIS-2, FC-PI-5, FC-LS-2, FC-SP-2, FC-SB-4, FC-DA-2, FC-MI-3, FC-MSQS, FC-BB-6, FC-SB-5
Network / Transport Protocol IPSec, FCIP, SFTP
Remote Management Protocol RMON, SNMP 3, SSH-2, CLI
Status Indicators Power, system
Features Hot swap module replacement, Syslog support, IPv6 support, Virtual Route Redundancy Protocol (VRRP) support, Quality of Service (QoS), RADIUS support, Automated Attendant (IVR), Internet Control Message Protocol (ICMP)
