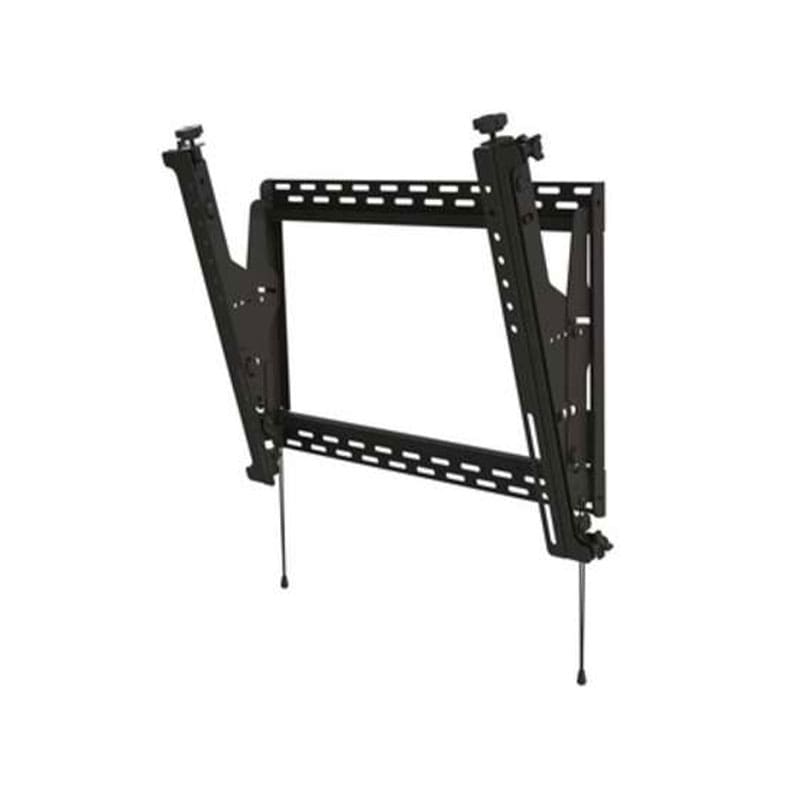

DS-MBZ647P Peerless-AV QSR Menu Board

DS-MBZ647P Overview

Peerless-AV QSR Menu Board.Peerless-AV’s QSR Menu Board Mount is designed to create a seamless mounting surface through connecting wall plates. Continuous and fixed tilt options allow all displays to be tilted at the same angle with ease, creating a flawless alignment. The QSR Menu Board Mount allows for tool-less height adjustment and four-corner depth adjustment to alleviate issues with wall imperfections and fine-tuning. The kickstand feature holds the bottom of the display away from the wall during cable connection, reducing installation time and cost. Available in landscape and portrait design options, Peerless-AV offers a one-to-one ordering process, making the QSR Menu Board Mount the perfect mounting solution.

Availability: In Stock
SKU:DS-MBZ647P
Brand:

DS-MBZ647P Technical Specifications

Peerless-AV QSR Menu Board

Brand: Peerless-AV
Product Line: Peerless-AV QSR Menu Board
Manufacturer: Peerless
Product Information
Adjustments: Tilt
Max Mounting Pattern Size (Horizontal): 21.7 inch
Max Mounting Pattern Size (Vertical): 15.7 inch
Monitor Size Supported: 42″-48″
Mounting Components: Adapter rails, Wall plate
Packaged Quantity: 1
Product Type: Mounting kit
Recommended Display Size (metric): 106.7-121.9 cm
Usage: Flat panel
Dimensions & Weight
Height: 19.4 inch
Max Load Weight: 100.3 lbs
Weight: 9.04 lbs
Width: 22 inch
Depth: 3.1 inch
