DS-C9710-4BSK9 Technical Specifications

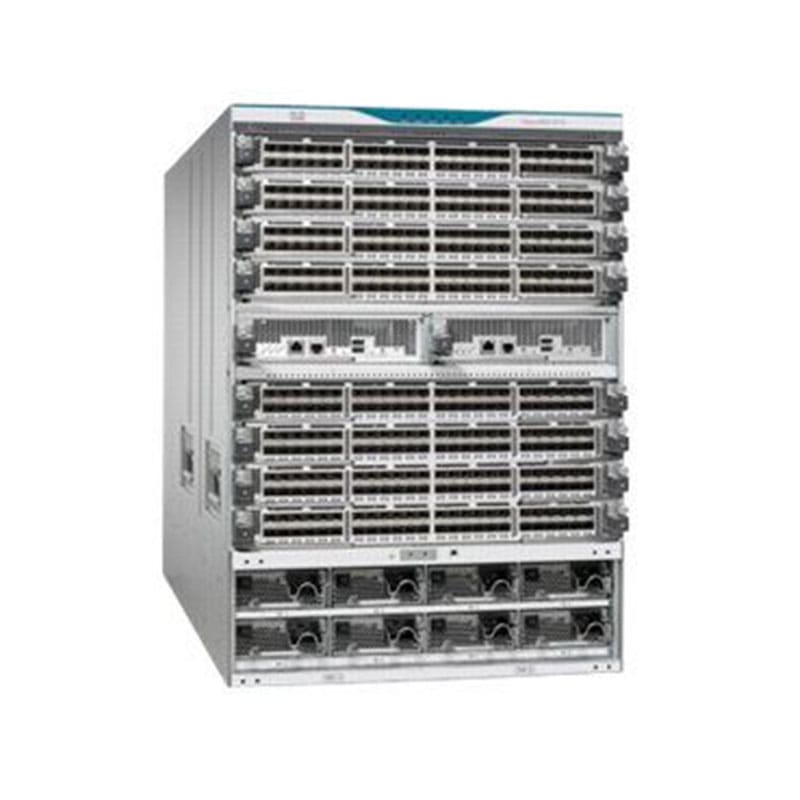

Cisco MDS 9710 Multilayer Director Bundle Config Switch Managed
Brand: Cisco
Product Line: Cisco MDS
Model: 9710 Multilayer Director
Manufacturer: CISCO DS HARDWARE DIRECT
Network & Communication
Form Factor (Hubs & Switches): Rack-mountable
Manageable: Yes
Product Type: Switch
Remote Management: CLI, RMON, SNMP 3, SSH-2
Subcategory: Fibre Channel and SAN
Switching Type: Fibre Channel
Power
Frequency: 50 – 80 hertz
Power Provided: 3000 watt
Power Supplies Installed: 6
Power Supplies Supported: 8
Redundant Power Supply: Yes
Redundant Power Supply Supported: N+N
Technical Information
Humidity Range Storage: 10 – 95% (non-condensing)
Max Operating Temperature: 104 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 10 – 90% (non-condensing)
Dimensions & Weight
Height: 24.4 inch
Height (Rack Units): 14
Width: 17.3 inch
Depth: 34 inch
