DS-C9509 Technical Specifications

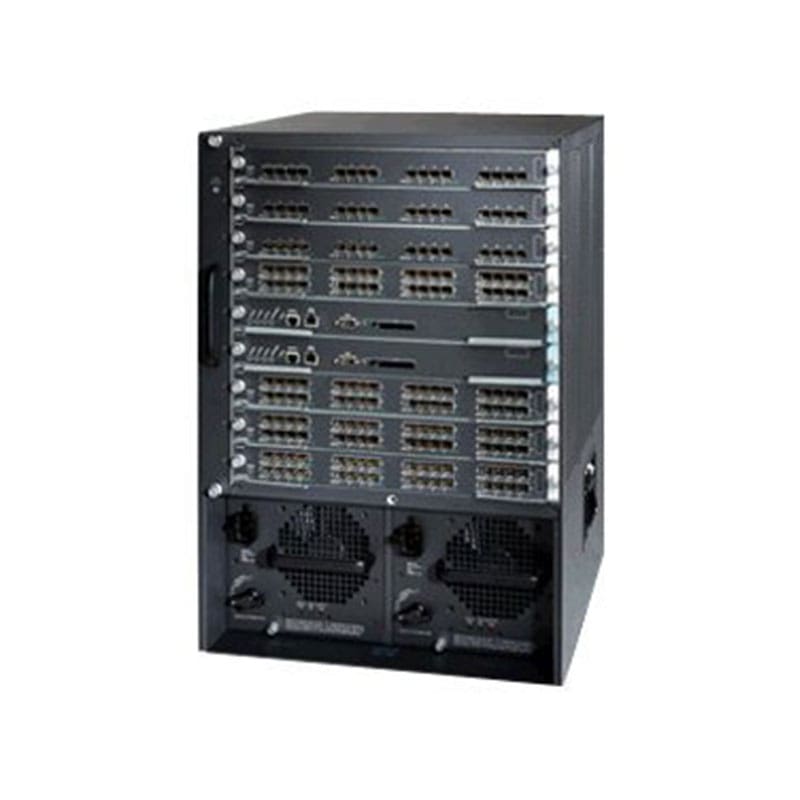

Cisco MDS 9509 Multilayer Director Switch Rack-Mountable
Brand: Cisco
Product Line: Cisco MDS
Model: 9509 Multilayer Director
Manufacturer: CISCO DS HARDWARE DIRECT
Network & Communication
Form Factor (Hubs & Switches): Rack-mountable
Product Type: Switch
Subcategory: Fibre Channel and SAN
Switching Type: Fibre Channel
Expansion Slots
Expansion Slots: 9 (total) / 9 (free) x expansion slot
Power
Power Supplies Supported: 2
Redundant Power Supply: Yes
Technical Information
Max Operating Temperature: 104 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 10 – 90%
Supported Devices: 9
Product Information
Device Type: Internal power supply (not installed)
Installed Devices/Modules: 0
Packaged Quantity: 1
Dimensions & Weight
Height: 24.5 inch
Height (Rack Units): 14
Weight: 55.12 lbs
Width: 17.3 inch
Depth: 18.4 inch
Certifications & Listings
ENERGY STAR Certified: No
