DS-C9220I-4PIK9 Technical Specifications

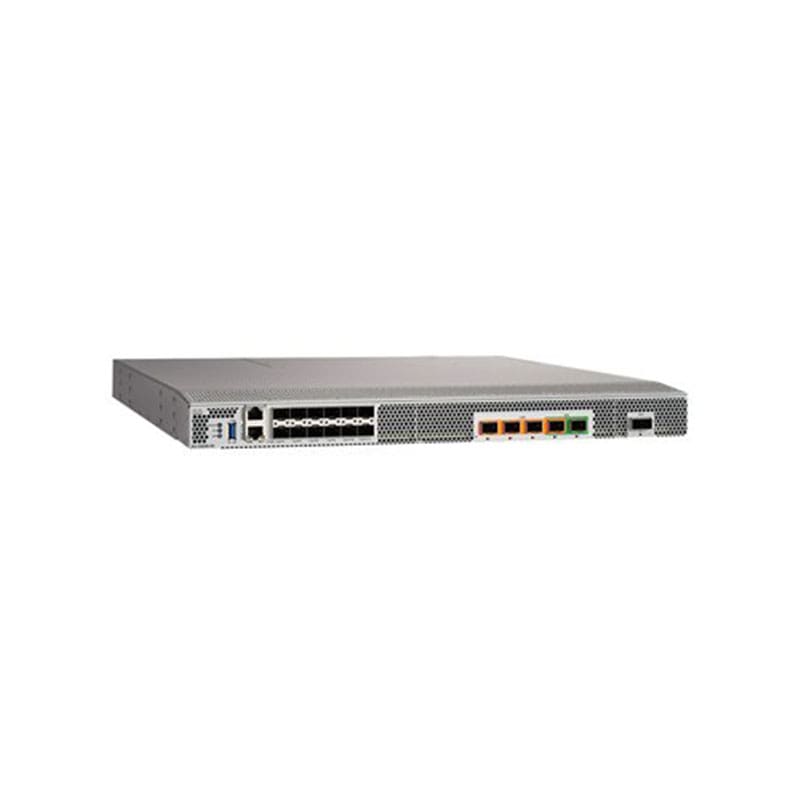

Cisco MDS 9220i Multiservice Fabric Switch Base Switch Rack-mountable
Width: 17.3 in
Depth: 20.1 in
Height: 1.7 in
Weight: 21.61 lbs
Environmental Parameters
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 10 – 90% (non-condensing)
Min Storage Temperature: -40 °F
Max Storage Temperature: 158 °F
Humidity Range Storage: 10 – 95% (non-condensing)
General
Device Type: Switch
Enclosure Type: Front to back airflow rack-mountable 1U
Subtype: Fibre Channel
Encryption Algorithm: AES, IKE, IKEv2
Compliant Standards: IEEE 802.3, IEEE 802.1Q
Power
Power Device: Internal power supply – hot-plug
Installed Qty: 2
Max Supported Qty: 2
Power Redundancy: Yes
Power Redundancy Scheme: 1+1
Power Provided: 500 Watt
Voltage Required: AC 100-240 V (50/60 Hz)
Power Consumption Operational: 240 Watt
80 PLUS Certification: 80 PLUS Platinum
