Refurbished DS-C9148T-48PITK9 Technical Specification

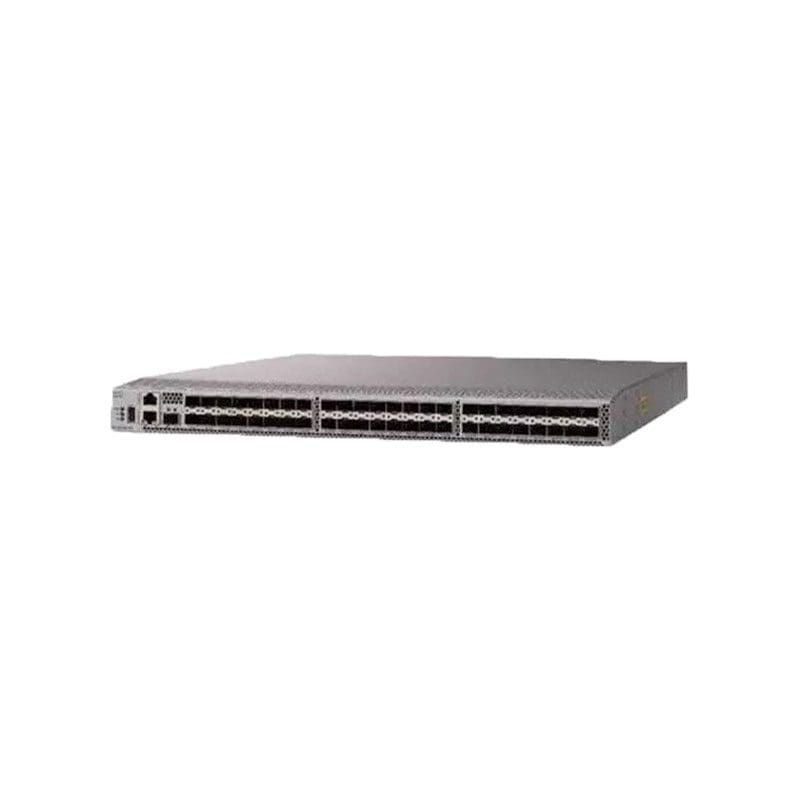

Cisco MDS 9148T Switch 48 Ports
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco MDS
Model :9148T
Packaged Quantity :1
Networking
Type :Switch
Subcategory :Fibre Channel and SAN
Subtype :Fibre Channel
Form Factor :Rack-mountable
Ports Qty :48
Fibre Channel :FAIS, FAIS-2, FC-BB-2, FC-BB-3, FC-BB-4, FC-BB-5, FC-BB-6, FC-DA, FC-DA-2, FC-FLA, FC-FS, FC-FS-2, FC-FS-3, FC-FS-4, FC-GS-3, FC-GS-4, FC-GS-5, FC-GS-6, FC-GS-7, FC-IFR, FC-LS, FC-LS-2, FC-LS-3, FC-MI, FC-MI-2, FC-MI-3, FC-MSQS, FCP, FCP-2, FCP-3, FCP-4, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PI-2, FC-PI-3, FC-PI-4, FC-PI-5, FC-PI-6, FC-PLDA, FC-SB-2, FC-SB-3, FC-SB-4, FC-SB-5, FC-SP, FC-SP-2, FC-SW-2, FC-SW-3, FC-SW-4, FC-SW-5, FC-SW-6, FC-Tape, FC-VI
Routing Protocol :VRRP
Manageable :Yes
Remote Management Protocol :CLI, HTTPS, RMON, SFTP, SMI-S, SNMP 3, SSH-2
Status Indicators :System
Features :4 fan trays, Access Control List (ACL) support, Anti-Counterfeit Technology, Authentication, Authorization and Accounting (AAA), Embedded Event Manager (EEM), Fabric Configuration Server (FCS), In-Service Software Upgrade (ISSU), Online Health Management System (OHMS), Port air intake, Power-on self-test (POST), Registered State Change Notification (RSCN) support, Role-Based Access Control (RBAC), Secure boot, Switched Port Analyzer (SPAN), Syslog support, TrustSec support
Ports
Qty :48
Interface Provided
Interfaces :1 x 1000Base-T RJ-45 management, 1 x 10GBase-X SFP+ management, 1 x serial (RS-232) management, 1 x USB Type A, 48 x 32Gb Fibre Channel LC
Software
Type :8-port upgrade license (3 x MDS 9148T 32G FC switch), MDS 9148T Supervisor/Fabric-6, NX-OS Software Rel. 8.3(1)
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Optional
Max Supported Qty :2
Power Provided :650 watt
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
80 PLUS Certification :80 PLUS Platinum
Miscellaneous
Color Category :Gray
Height (Rack Units) :1
Encryption Algorithm :AES
Authentication Method :LDAP, RADIUS, Secure Shell v.2 (SSH2), TACACS+
Compliant Standards :21 CFR 1040, AS/NZS 3260, AS/NZS 3548 Class A, CAN/CSA C22.2 No. 60950, CAN/CSA-C22.2 No. 60950, CISPR 22 Class A, EMC, EN 55022 Class A, EN 60825, EN 60950, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN50082-1, EN55024, FCC CFR47 Part 15 A, ICES-003 Class A, IEC 60825, IEC 60950, TS001, UL 60950, VCCI Class A
Dimensions & Weight
Width :17.3 inch
Depth :22.3 inch
Height :1.7 inch
Weight :18.74 lbs
