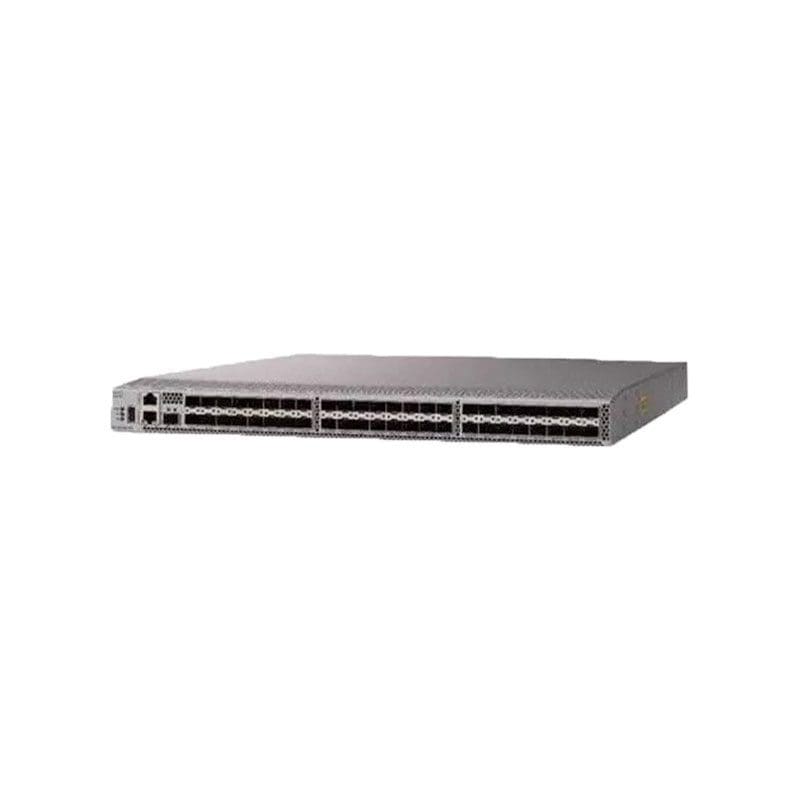

Refurbished DS-C9148T-24PETK9 Technical Specification
Cisco MDS 9148T Switch 48 Ports
General
Device Type Switch – 48 ports – managed
Enclosure Type Rack-mountable 1U
Subtype Fibre Channel
Ports 24 x 32Gb Fibre Channel SFP+
Fibre Channel FC-DA, FC-FLA, FC-FS, FC-GS-3, FC-GS-4, FC-MI, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PLDA, FC-SB-2, FC-SB-3, FC-SW-2, FC-SW-3, FC-Tape, FC-VI, FC-SP, FCP-4, FC-BB-2, FCP, FCP-2, FC-PI-2, FC-BB-5, FC-BB-3, FC-FS-2, FC-GS-5, FC-SW-4, FCP-3, FC-LS, FC-MI-2, FC-PI-4, FC-FS-3, FC-GS-6, FC-PI-3, FC-SW-5, FC-BB-4, FC-IFR, FAIS, FAIS-2, FC-PI-5, FC-LS-2, FC-SP-2, FC-SB-4, FC-DA-2, FC-MI-3, FC-MSQS, FC-BB-6, FC-SB-5, FC-FS-4, FC-SW-6, FC-GS-7, FC-PI-6, FC-LS-3
Routing Protocol VRRP
Remote Management Protocol RMON, SNMP 3, HTTPS, SMI-S, SSH-2, CLI, SFTP
Encryption Algorithm AES
Authentication Method RADIUS, TACACS+, Secure Shell v.2 (SSH2), LDAP
Features Syslog support, Access Control List (ACL) support, Registered State Change Notification (RSCN) support, In-Service Software Upgrade (ISSU), Fabric Configuration Server (FCS), Role-Based Access Control (RBAC), TrustSec support, Power-on self-test (POST), 4 fan trays, Authentication, Authorization and Accounting (AAA), secure boot, Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Anti-Counterfeit Technology, Online Health Management System (OHMS)
Status Indicators System
Expansion / Connectivity
Interfaces 24 x 32Gb Fibre Channel LC | 1 x 1000Base-T RJ-45 management | 1 x 10GBase-X SFP+ management | 1 x USB Type A | 1 x serial (RS-232) management
Power
Power Device Internal power supply – hot-plug
Installed Qty 2 (installed) / 2 (max)
Power Redundancy Yes
Power Provided 650 Watt
Voltage Required AC 120/230 V (50/60 Hz)
80 PLUS Certification 80 PLUS Platinum
Features Port side exhaust
Miscellaneous
Included Accessories Accessory kit
Compliant Standards CISPR 22 Class A, EN 60950, EN 61000-3-2, IEC 60950, EN 61000-3-3, EN55024, UL 60950, EN50082-1, EN 61000-6-1, AS/NZS 3260, EMC, ICES-003 Class A, EN 60825, AS/NZS 3548 Class A, IEC 60825, CAN/CSA C22.2 No. 60950, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, 21 CFR 1040, TS001
Software / System Requirements
Software Included MDS 9148T Supervisor/Fabric-6, NX-OS Software Rel. 8.3(1)
Dimensions & Weight
Width 17.3 in
Depth 22.3 in
Height 1.7 in
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 – 90% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F
Humidity Range Storage 10 – 95% (non-condensing)
