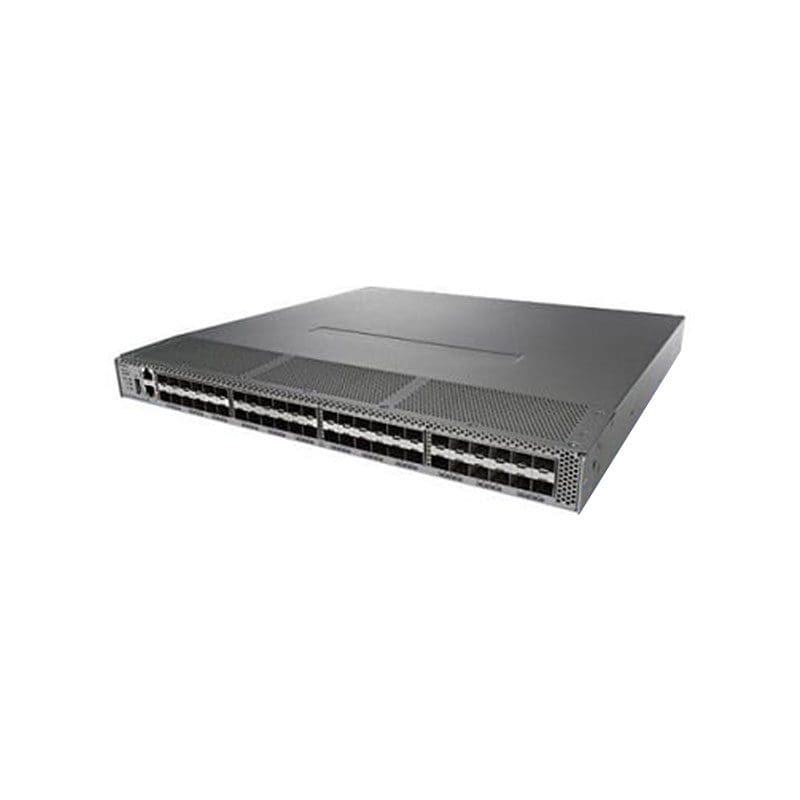

Refurbished DS-C9148S-D12PSK9 Technical Specification
Cisco MDS 9148S Switch 48 Ports
Manufacturer :Pure Stroage
Brand :Cisco
Product Line :Cisco MDS
Model :9148S
Packaged Quantity :1
Chassis
Airflow Direction :Back to front airflow
Networking
Type :Switch
Subcategory :Fibre Channel and SAN
Subtype :Fibre Channel
Form Factor :Rack-mountable
Ports Qty :48
Fibre Channel :FAIS, FAIS-2, FC-BB-2, FC-BB-3, FC-BB-4, FC-BB-5, FC-BB-6, FC-DA, FC-DA-2, FC-FLA, FC-FS, FC-FS-2, FC-FS-3, FC-GS-3, FC-GS-4, FC-GS-5, FC-GS-6, FC-IFR, FC-LS, FC-LS-2, FC-MI, FC-MI-2, FC-MI-3, FC-MSQS, FCP, FCP-2, FCP-3, FCP-4, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PI-2, FC-PI-3, FC-PI-4, FC-PI-5, FC-PLDA, FC-SB-2, FC-SB-3, FC-SB-4, FC-SP, FC-SP-2, FC-SW-2, FC-SW-3, FC-SW-4, FC-SW-5, FC-Tape, FC-VI
Manageable :Yes
Remote Management Protocol :CLI, HTTP, RMON, SMI-S, SNMP 3, SSH-2
Features :Access Control List (ACL) support, Auto-sensing per device, Back to front airflow, ISL support, Quality of Service (QoS), Registered State Change Notification (RSCN) support, Remote Switch Port Analyzer (RSPAN), Role based access control, SFTP client, Virtual Route Redundancy Protocol (VRRP) support
Ports
Qty :12
Ports (2nd)
Qty :16
Type :16Gb Fibre Channel SFP+
Interface Provided
Interfaces :1 x 1000Base-T RJ-45 management, 1 x serial (RS-232) RJ-45 management, 1 x USB Type A, 12 x 16Gb Fibre Channel LC multi-mode x 2, 16 x 16Gb Fibre Channel SFP+
Software
Type :Cisco Data Center Network Manager (DCNM) for SAN Advanced Edition, Cisco MDS 9000 Family Enterprise Package
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Yes
Power Redundancy Scheme :1+1
Installed Qty :2
Max Supported Qty :2
Power Provided :300 watt
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Miscellaneous
Color Category :Gray
Height (Rack Units) :1
Encryption Algorithm :AES
Authentication Method :Active Directory, LDAP, RADIUS, Secure Shell v.2 (SSH2), TACACS+
Compliant Standards :ACA TS001, AS/NZS 3260, CAN/CSA C22.2 No. 60950, CISPR 22 Class A, EMC, EN 55022 Class A, EN 60825, EN 60950, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN50082-1, EN55024, FCC CFR21 Part 1040, FIPS 140-2, ICES-003 Class A, IEC 60825, IEC 60950, UL 60950
Dimensions & Weight
Width :17.2 inch
Depth :16.3 inch
Height :1.7 inch
Weight :19.84 lbs
