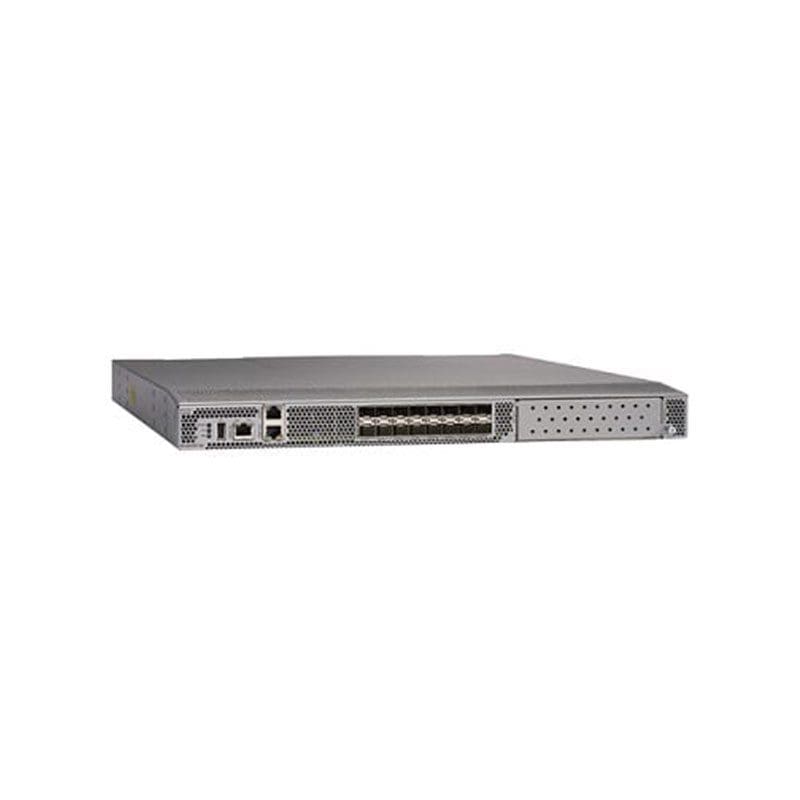

Refurbished DS-C9132T-8PMESK9 Technical Specification
Cisco MDS 9132T Switch
Brand :Cisco
Product Line :Cisco MDS
Model :9132T
Packaged Quantity :1
Networking
Type :Switch
Subcategory :Fibre Channel and SAN
Subtype :Fibre Channel
Form Factor :Rack-mountable
Fibre Channel :FAIS, FAIS-2, FC-BB-2, FC-BB-3, FC-BB-4, FC-BB-5, FC-BB-6, FC-DA, FC-DA-2, FC-FLA, FC-FS, FC-FS-2, FC-FS-3, FC-GS-3, FC-GS-4, FC-GS-5, FC-GS-6, FC-GS-7, FC-IFR, FC-LS, FC-LS-2, FC-LS-3, FC-MI, FC-MI-2, FC-MI-3, FC-MSQS, FCP, FCP-2, FCP-3, FCP-4, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PI-2, FC-PI-3, FC-PI-4, FC-PI-5, FC-PLDA, FC-SB-2, FC-SB-3, FC-SB-4, FC-SB-5, FC-SP, FC-SP-2, FC-SW-2, FC-SW-3, FC-SW-4, FC-SW-5, FC-Tape, FC-VI
Routing Protocol :VRRP
Manageable :Yes
Remote Management Protocol :HTTPS, RMON, SFTP, SMI-S, SNMP, SNMP 3, SSH-2
Status Indicators :Fan, Power, System
Features :2 fans, Access Control List (ACL) support, ARP support, Authentication, Authorization and Accounting (AAA), Automated Attendant (IVR), Auto-sensing per device, Built-in ASIC, Cisco Inter-Switch Link (ISL), Fabric Configuration Server (FCS), In-Service Software Upgrade (ISSU), LDAP support, Port exhaust, Power-on self-test (POST), Quality of Service (QoS), Read Diagnostic Parameters (RDP), Registered State Change Notification (RSCN) support, Role-Based Access Control (RBAC), Switched Port Analyzer (SPAN), Syslog support, TrustSec support, Virtual Machine Identity (VMID) support
Ports
Qty :8
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x expansion slot
Interface Provided
Interfaces :1 x console RJ-45, 1 x USB Type A, 2 x management (Gigabit LAN) RJ-45, 8 x 16Gb Fibre Channel SFP+ Ports on Demand, 8 x 32Gb Fibre Channel SFP+ LC multi-mode x 2
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Optional
Installed Qty :1
Max Supported Qty :2
Power Provided :650 watt
Nominal Voltage :AC 120/230 V
Frequency Required :50 – 60 hertz
Features :80 PLUS Platinum efficiency
Miscellaneous
Color Category :Gray
Height (Rack Units) :1
Encryption Algorithm :AES
Authentication Method :LDAP, RADIUS, TACACS+
Compliant Standards :21 CFR 1040, AS/NZS 3260, AS/NZS 3548 Class A, CAN/CSA C22.2 No. 60950, CISPR 22 Class A, EMC, EN 55022 Class A, EN 60825, EN 60950, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN50082-1, EN55024, FCC Part 15 A, ICES-003 Class A, IEC 60825, IEC 60950, TS001, UL 60950, VCCI Class A
Dimensions & Weight
Width :1.7 inch
Depth :17.3 inch
Height :20.1 inch
