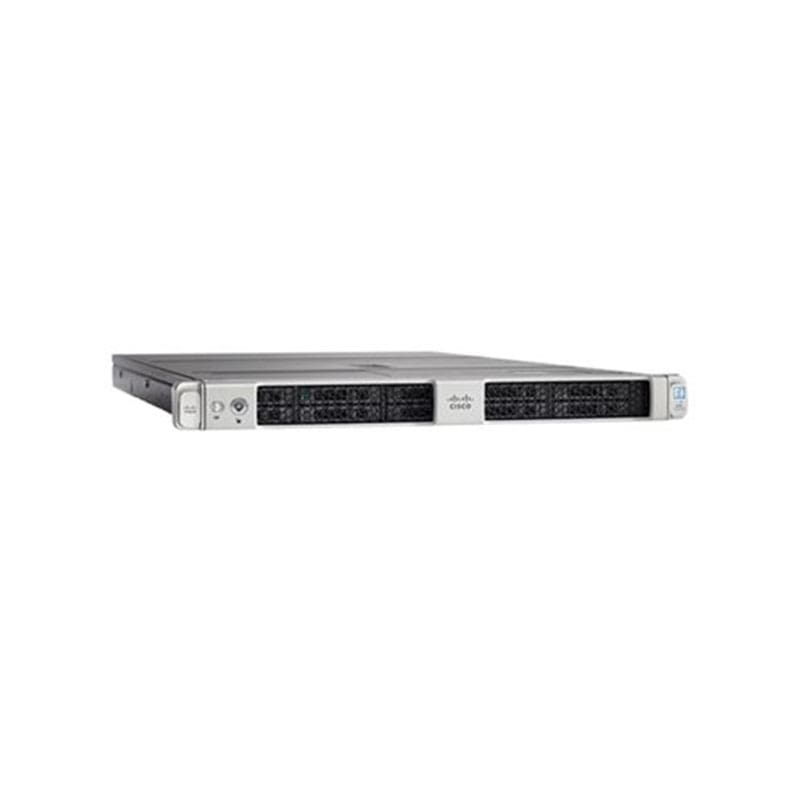

DN2-HW-APL Technical Specifications
Cisco DNA Center (GEN 2) 44 Core Network Management Device
Brand Cisco
Product Line Cisco DNA Center
Model (GEN 2) 44 Core
Manufacturer
CISCO DS HARDWARE DIRECT
Processor
Processor Type Xeon
Total Processor Supported 2
Network & Communication
Connectivity Technology Wired
Data Link Protocols 10 Gigabit Ethernet
Form Factor
Rack-mountable Product Type
Network management device
Connectivity
Interface Provided
1 x 1000Base-T (management) – RJ-45, 1 x keyboard / video / mouse (KVM), 1 x RS-232 – RJ-45, 1 x video – DB-15, 2 x 10Gb Ethernet – RJ-45, 2 x 10GBase-T – RJ-45, 2 x USB 3.0
Power
Frequency 50 – 60 hertz
Hot-Plug Hot-plug
Power Provided 770 watt
Power Supplies Supported 2
Redundant Power Supply Yes
80 PLUS Certification
80 PLUS Platinum
Technical Information
Hard Drive Form Factor 2.5″
Hard Drive Form Factor (metric) 6.4 cm
Max Operating Temperature 95 degree Fahrenheit
Min Operating Temperature 41 degree Fahrenheit
Operating Humidity 10 – 90% (non-condensing)
Product Information Device Type
Internal power supply
Packaged Quantity 1
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1
Width 16.9 inch
Depth 29.8 inch
