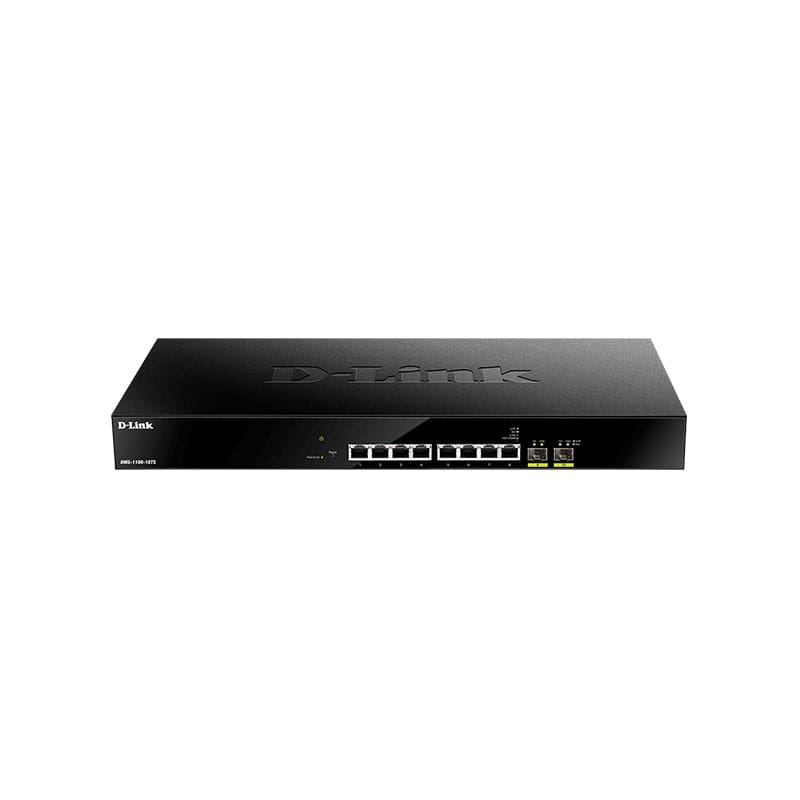

DMS-1100-10TS Technical Specifications
D-Link 8-Port Multi-Gigabit Ethernet Smart Managed Switch
Comply with RoHS 6: Yes
CPU Speed: 800MHz
DRAM Size: 256MB
Flash Memory Size: 128MB
Operating Altitude: 2000 m
By System Hibernation
IEEE 802.1w RSTP
VLAN 802.1Q
Asymmetric VLAN
Auto Surveillance VLAN
Port-based VLAN
VLAN Groups
Voice VLAN
Control 802.3x Flow
Dimensions: 440 x 210 x 44 mm
Energy Efficiency Ethernet (EEE): Yes
FAN: Smart Fan
Head-of-line (HOL) Blocking Prevention: Yes
Humidity: Operating: 0% – 95% RH
Storage: 0%-95% RH
Interfaces: 2 x 10G SFP+, 8 x 2.5GBase-T
Auto MDI/MDIX
Jumbo Frame: 9KB
MAC Address Table Size: 16K
114.96 BTU/hr (240V)
Maximum Power Consumption: 33.7 W
MTBF: 378,023.34 Hours
Power Input: 100 to 240 V AC
Standby Power Consumption: 21.6 W
