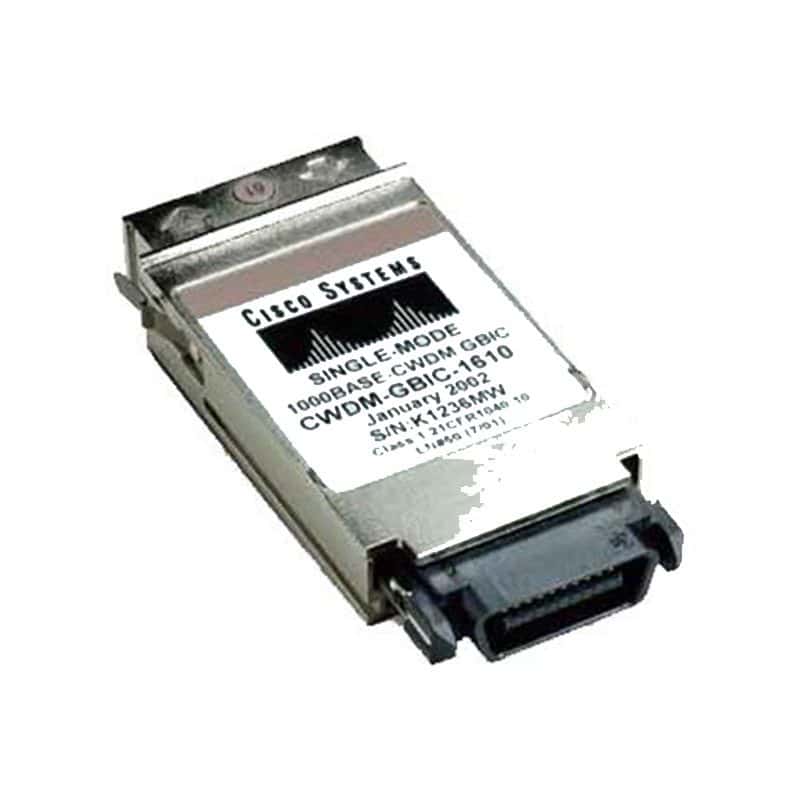

CWDM-GBIC-1610 Technical Specifications
Cisco 1Gbps 1000Base-ZX CWDM Single-Mode Fiber 80KM 1610NM Duplex SC Connector GBIC
General Information
Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: CWDM-GBIC-1610
Brand Name: Cisco Transceiver
Product Model CWDM
Product Name: 1000BASE-CWDM 1610 nm GBIC
Product Type: GBIC
Technical Information
Application/Usage Data Networking
Interfaces/Ports
Interfaces/Ports Details: 1 x SC Duplex 1000Base-X
Media & Performance
Media Type: Supported Optical Fiber
Ethernet Technology: Gigabit Ethernet
Network Technology: 1000Base-X
Maximum Data Transfer Rate: 1.25 Gbit/s
Miscellaneous
Additional Information-
Available center wavelength is 1610nm
Color: Brown
Optical link budget of 30 decibels (dB)
Transport of up to eight channels over single-mode fiber strands
Allows for a variety of network configurations-from multichannel point-to-point to hub and meshed-ring configurations
Compatibility-
Catalyst: Cisco 2900 Series
Catalyst: 2900XL
Catalyst: 2950 series
Catalyst: 3500XL series
Catalyst: 3550 series
Catalyst: 4500 series
