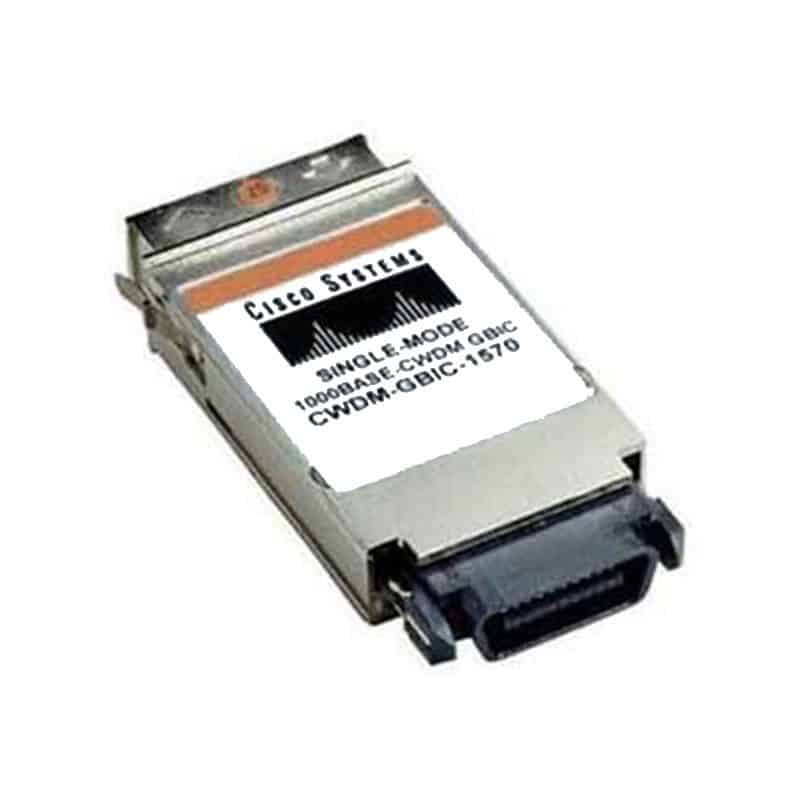

CWDM-GBIC-1570 Technical Specifications
Cisco 1Gbps 1000BASE-CWDM Single-Mode Fiber 80KM 1570NM Duplex SC Connector GBIC
General Information
Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: CWDM-GBIC-1570
Brand Name: Cisco Transceiver
Product Name: 1000BASE-CWDM 1570 nm GBIC
Product Type: GBIC
Technical Information
Application/Usage: Data Networking
Interfaces/Ports
Interfaces/Ports Details: 1 x SC Duplex 1000BASE-CWDM
Media & Performance
Media Type: Supported Optical Fiber
Ethernet Technology: Gigabit Ethernet
Network Technology: 1000BASE-CWDM
Maximum Data Transfer Rate: 1.25 Gbit/s
Miscellaneous
Additional Information-
Available center wavelength is 1570nm
Color: Orange
Optical link budget of 30 decibels (dB)
Transport of up to eight channels over single-mode fiber strands (SMF)
Allows for a variety of network configurations-from multichannel point-to-point to hub and meshed-ring configurations
Compatibility
Catalyst 2900 Series, Catalyst 2900XL, Catalyst 2950 series, Catalyst 3500XL series, Catalyst 3550 series, Catalyst 4500 series
