CTFC-161P-000 Technical Specifications

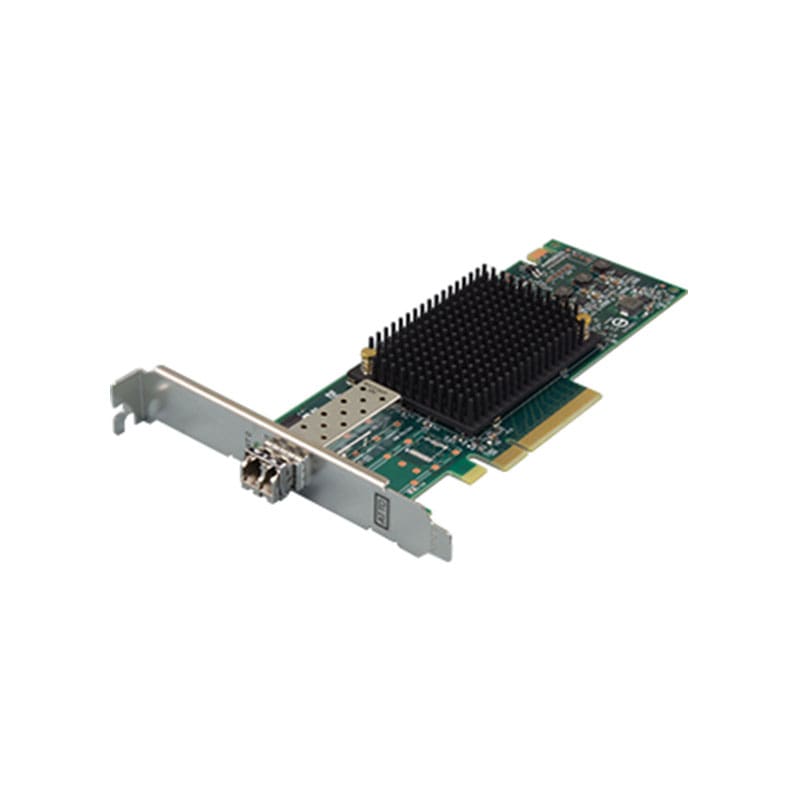

ATTO Celerity FC-161P Host Bus Adapter PCIe 3.0 x8 16Gb Fibre Channel x 1
Brand: ATTO
Product Line: ATTO Celerity
Model: FC-161P
Manufacturer: Atto Technology
Network & Communication
Connectivity Technology: Wired
Data Link Protocols: 16Gb Fibre Channel
Form Factor: lug-in card
Host Interface: PCI Express 3.0 x8
Low Profile: Low profile
PCI Specification Revision: PCIe 3.0
Product Type: Host bus adapter
Expansion Slots
Expansion Slots: 1 (total) / 0 (free) x SFP+
Connectivity
Interface Provided: 1 x 16Gb Fibre Channel – LC – x 2
Port Quantity: 1
Network & Adapter Ports: 16Gb Fibre Channel
Power
Power Consumption Operational: 9.6 watt
Software
Software Type: ATTO ConfigTool
Technical Information
Max Operating Temperature: 131 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 10 – 90% (non-condensing)
Product Information
Packaged Quantity: 1
Dimensions & Weight
Height: 4 inch
Depth: 6.6 inch
