CSSD-F4000GBMP510 Technical Specifications

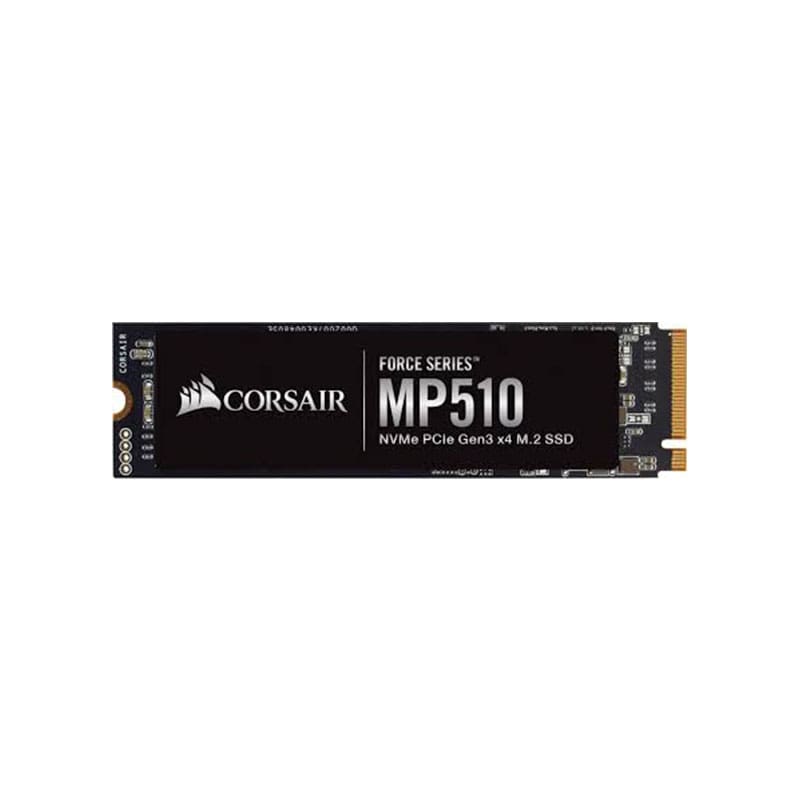

CORSAIR Force Series MP510 SSD 4TB PCIe 3.0 x4 (NVMe)
Brand CORSAIR
Product Line CORSAIR Force Series
Model MP510
Manufacturer Corsair
Storage
Endurance Type 6820 TB
Form Factor (Short) M.2
Form Factor (Short) (metric) M.2
Hard Drive Capacity 4 TB
Hard Drive Features
3D NAND Technology
Hard Drive Type
Internal hard drive
HD Interface
PCI Express 3.0 x4 (NVMe)
Max Internal Data Transfer Rate
3480 MBps
Max Write Transfer Rate
2000 MBps
NAND Flash Memory Type
3D triple-level cell (TLC)
Storage Interface
PCI Express 3.0 x4 (NVMe)
Connectivity
Interface Provided
1 x PCI Express 3.0 x4 (NVMe)
Power
Power Consumption
2 mW (DevSleep)
Technical Information
Compatible Bay
M.2 2280
Hard Drive Form Factor
M.2 2280
Hard Drive Form Factor (metric)
M.2 2280
Encryption
256-bit AES
Max Operating Temperature
158 degree Fahrenheit
Max Storage Temperature
185 degree Fahrenheit
Min Operating Temperature
32 degree Fahrenheit
Min Storage Temperature
-40 degree Fahrenheit
MTBF
1,800,000 Hours
Operating Humidity
90%
Product Information
Packaged Quantity 1
Product Type
Solid state drive
Dimensions & Weight
Height 0.9 inch
Width 0.6 inch
Depth 3.1 inch
