CRS504-4XQ-IN Technical Specifications

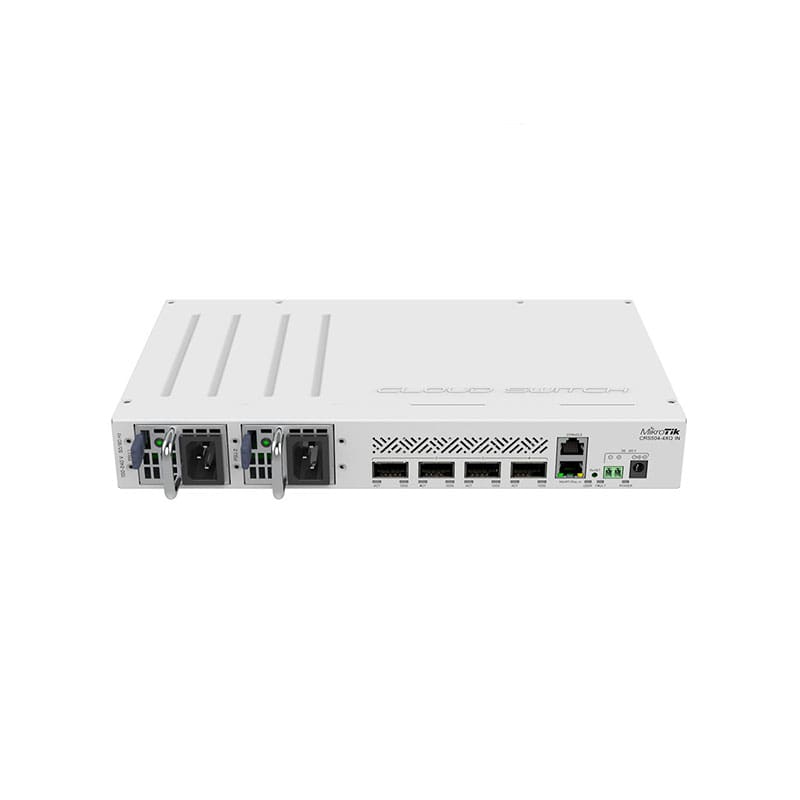

MikroTik CRS504 4x QSFP28 100Gbps Cloud Router Switch
Manufacturer: MikroTik
Brand: MikroTik
CPU: QCA9531
CPU core count: 1
CPU nominal frequency: 650 MHz
RouterOS license: 5
Operating System: RouterOS
Size of RAM: 64 MB
Storage size: 16 MB
Storage type: FLASH
Tested ambient temperature: -40°C to 70°C
Powering
Number of AC inputs: 2
AC input range: 100-240
DC jack input Voltage: 36-57 V
2-pin terminal input Voltage: 36-57 V
Frequency: (Hz) 47-63
Max power consumption: 41 W
Cooling type: 2 fans
PoE in 802.3 bt
PoE in input Voltage: 43-57 V
Ethernet
Details: 10/100 Ethernet ports 1
Fiber
Details: Number of 100G QSFP28 ports 4
Peripherals
Details: Serial console port RJ45
