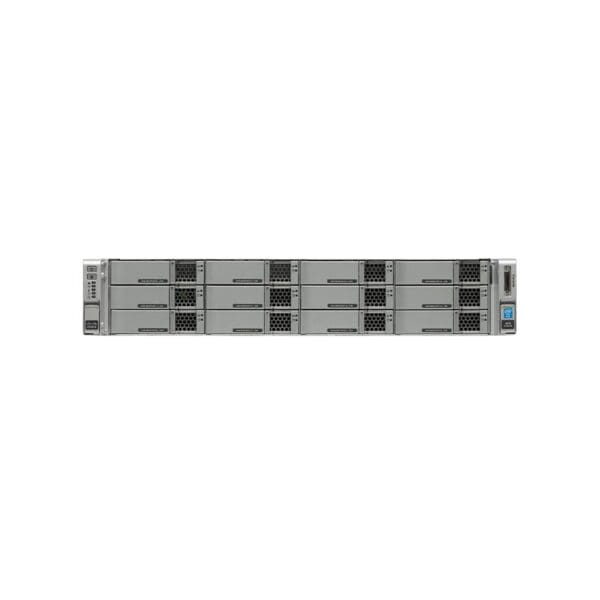

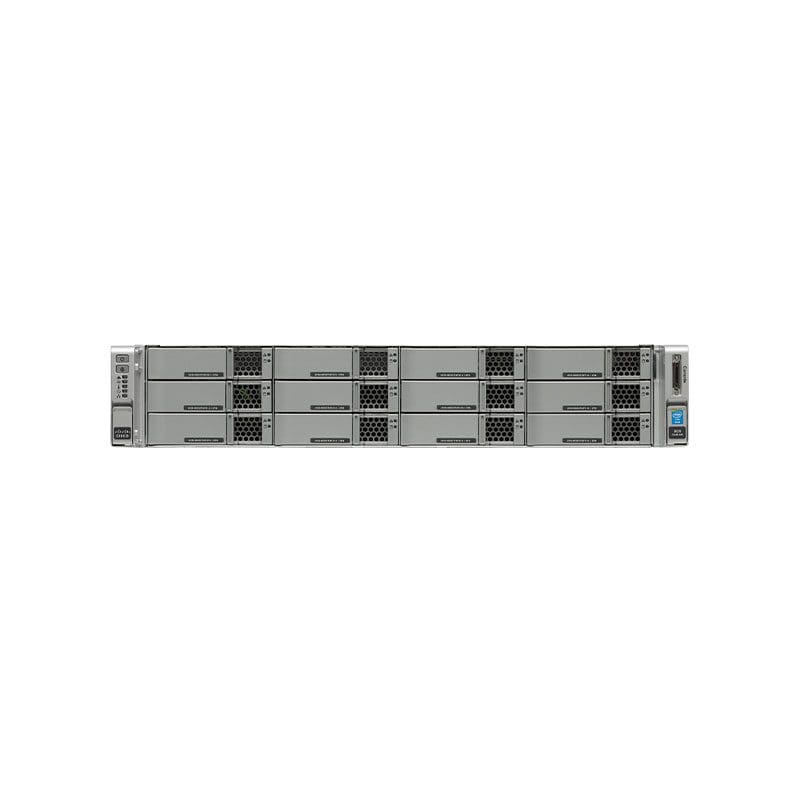

CPS-UCSM4-2RU-K9 Technical Specifications
Cisco Expressway CE500 – gateway
Cabinet
Chassis Built-in Devices :KVM switch
Dimensions & Weight
Depth :28.5 in
Height :1.7 in
Width :16.9 in
Environmental Parameters
Humidity Range Operating :10 – 90% (non-condensing)
Max Operating Temperature :104 °F
Min Operating Temperature :32 °F
Hard Drive
Form Factor :3.5″
Form Factor (metric) :8.9 cm
Hot-Swap :Hot swap
Installed Qty :2
Type :HDD
Header
Brand :Cisco
Compatibility :PC
Manufacturer :CISCO DS HARDWARE DIRECT
Model :CE500
Packaged Quantity :1
Product Line :Cisco Expressway
Interface Provided
Connector Type :RJ-45
Qty :1
Type :Serial
Connector Type :Type A
Qty :2
Type :USB 2.0
Type :1000Base-T (management)
Type :Ethernet 1000
Type :Keyboard / video / mouse (KVM)
Type :VGA
IP Telephony
VoIP Protocols :H.460, SIP, SRTP
Miscellaneous
Compliant Standards :AS/NZS 60950-1, AS/NZS CISPR22:2004 Class A, CAN/CSA-C22.2 No. 60950-1, CISPR 22 Class A, CISPR 24, CNS 13438(95) Class A, EN 300386, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, FCC CFR21 Part 1040, FCC CFR47 Part 15, GB 4943, ICES-003 Class A, IEC 60950-1 Second Edition, KN22 Class A, KN24, UL 60950-1, VCCI Class A
Encryption Algorithm :TLS
Height (Rack Units) :1
Networking
Connectivity Technology :Wired
Data Transfer Rate :1 Gbps
Features :Firewall protection, IPv4 support, IPv6 support, Trusted Platform Module (TPM)
Form Factor :Rack-mountable
Network Transport Protocol :DNS, RTP
Remote Management Protocol :CLI, HTTP, HTTPS, IPMI 2.0, SNMP 1, SNMP 2, SNMP 3, SSH
Status Indicators :Fan, HDD activity, KVM, Link/activity, Power, System, Temperature
Type :Gateway
Power Device
Hot-Plug :Hot-plug
Installed Qty :2
Max Supported Qty :2
Power Redundancy :Yes
Type :Internal power supply
Processor
Clock Speed :3.3 GHz
Installed Qty :1
Manufacturer :Intel
Type :Intel Xeon E5-264v3
RAM
Installed Size :16 GB
Technology :DDR3 SDRAM
