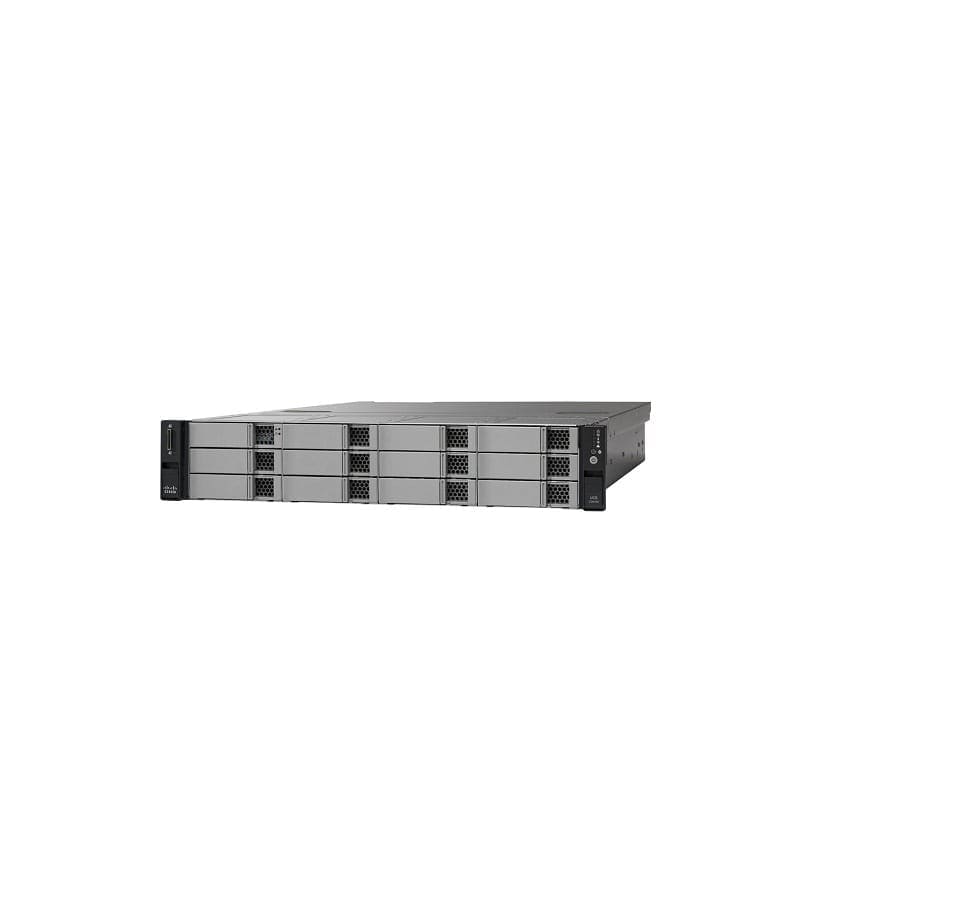

CPS-UCS-2RU-K9 Technical Specifications
Cisco Connected Safety and Security UCS C240
Bay Provided
Form Factor :3.5″
Free Qty :12
Total Qty :12 Bays
Environmental Parameters
Humidity Range Operating :10 – 90% (non-condensing)
Max Operating Temperature :104 °F
Min Operating Temperature :41 °F
Header
Brand :Cisco
Compatibility :PC
Manufacturer :CISCO DS HARDWARE DIRECT
Model :C240 M5
Packaged Quantity :1
Product Line :Cisco UCS
Interface Provided
Location :1 in front
Type :KVM
Qty :1
Type :Serial
Qty :2
Type :USB 2.0
Qty :4
Type :LAN (Gigabit Ethernet)
Type :Management (NIC)
Type :VGA
Miscellaneous
Color Category :Gray
Compliant Standards :AS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1, EN 300 386, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, FCC CFR47 Part 15, GB 4943, ICES-003 Class A, IEC 60950-1, UL 60950-1, VCCI Class A ITE
Height (Rack Units) :2
Networking
Data Link Protocol :Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Controller(s) :Intel I350
Ethernet Ports :4 x Gigabit Ethernet
Form Factor :Integrated
Remote Management Controller :Emulex Pilot 3 iBMC
Remote Management Protocol :CLI, IPMI 2.0
Power Device
Frequency Required :50/60 Hz
Installed Qty :2
Max Supported Qty :2
Nominal Voltage :AC 120/230 V
Power Provided :650 Watt
Power Redundancy :Yes
Power Redundancy Scheme :1+1
Type :Power supply
Slot Provided
Free Qty :0
Total Qty :2
Free Qty :1
Total Qty :1
Free Qty :2
Free Qty :22
Total Qty :24
Storage Removable
Type :None
Dimensions & Weight
Depth :28 in
Height :3.4 in
Width :17.5 in
