CPAK-100G-SR10 Technical Specifications

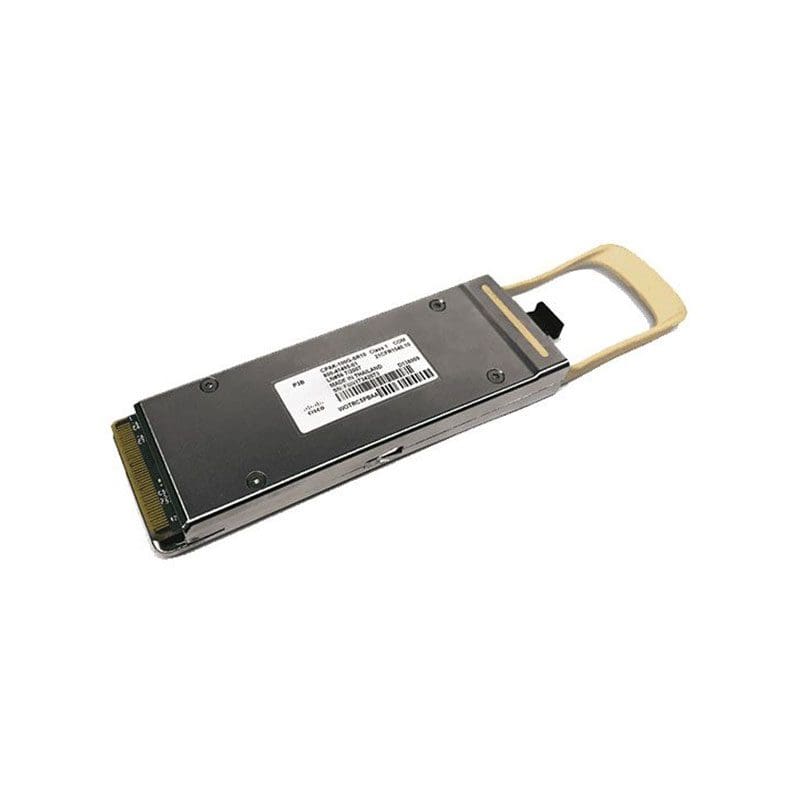

Cisco CPAK Transceiver Module 100Gbase-SR10 SC/PC Multi-Mode
General Information
Manufacturer Cisco Systems, Inc
Brand Name Cisco Transceiver
Product Type: CPAK
Product Name: 100GBASE-SR10 CPAK Module for MMF
Interfaces/Ports Details: 1 x MPO/MTP Duplex 100GBase-SR10 Network
Network Technology: 100GBase-SR10
Maximum Data Transfer Rate: 100 Gbit/s
Media Type Supported: Optical Fiber
Fiber Optic Cable Standard: 50 µm
Maximum Data Transfer Rate: 100 Gbit/s
Ethernet Technology: 100 Gigabit Ethernet
Media Type Supported: Optical Fiber
Fiber Mode Supported: Multi-mode Fiber (MMF)
Application/Usage: Data Networking
Application/Usage: Optical Network
Cable Distance: 100m @ OM3, 150m @ OM4
Transmit Power (dBm): Maximum: -1.0 per lane, Minimum: -7.6 per lane
Receive Power (dBm): Maximum: 2.4 per lane, Minimum: -9.5 per lane
