CP-9020139-NA Technical Specifications

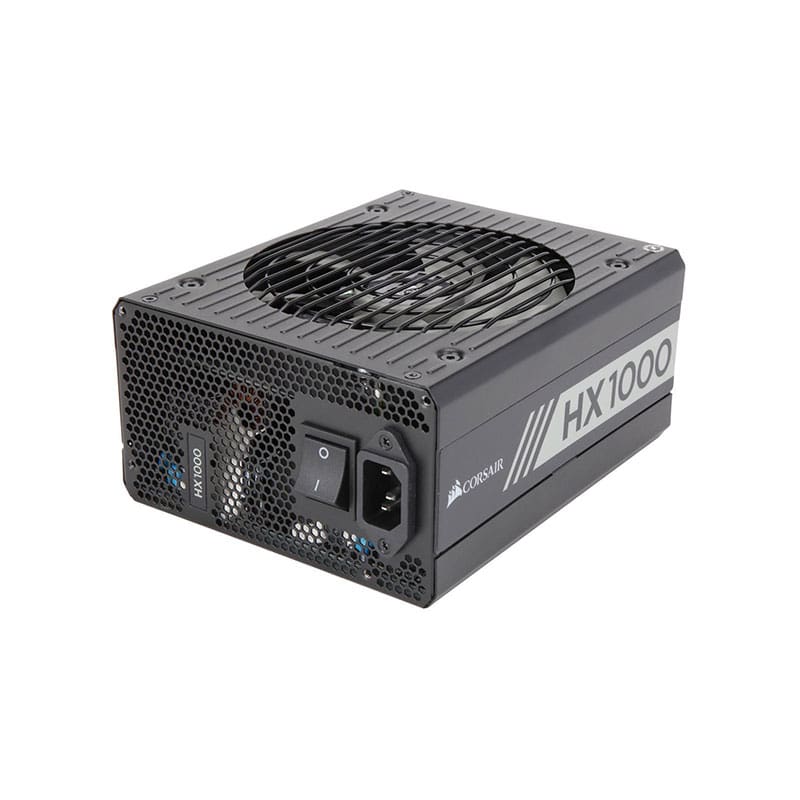

Corsair 1000W HX Series HX1000 80 PLUS Platinum Modular Power Supply
Manufacturer: CORSAIR
Device Type: Power supply – internal
Specification Compliance: ATX12V 2.4/ EPS12V 2.92
PSU Form Factor: ATX
Input Voltage: AC 100-240 V
Frequency Required: 47 – 63 Hz
Power Output Connectors Details:
1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 8 x 8 pin PCI E …
Output Voltage: +3.3, +5, ±12 V
Power Capacity: 1000 Watt
Output Current: +3.3V – 25 A ¦ +5V – 25 A ¦ +12V – 83.3 A ¦ -12V – 0.8 A ¦ +5VSB – 3 A
Modular Cable Management: Yes
80 PLUS Certification: 80 PLUS Platinum
Included Accessories: Case badge, cable ties, mounting kit
Cables Included: Power cable kit
Cooling System: 135 mm fan
Width: 5.9 in
Depth: 7.1 in
Height: 3.4 in
Weight: 4.3 lbs
Output connectors:
1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 8 x 8 pin PCI E …
Dimensions (WxDxH): 5.9 in x 7.1 in x 3.4 in
