CM8068404174806 Technical Specifications

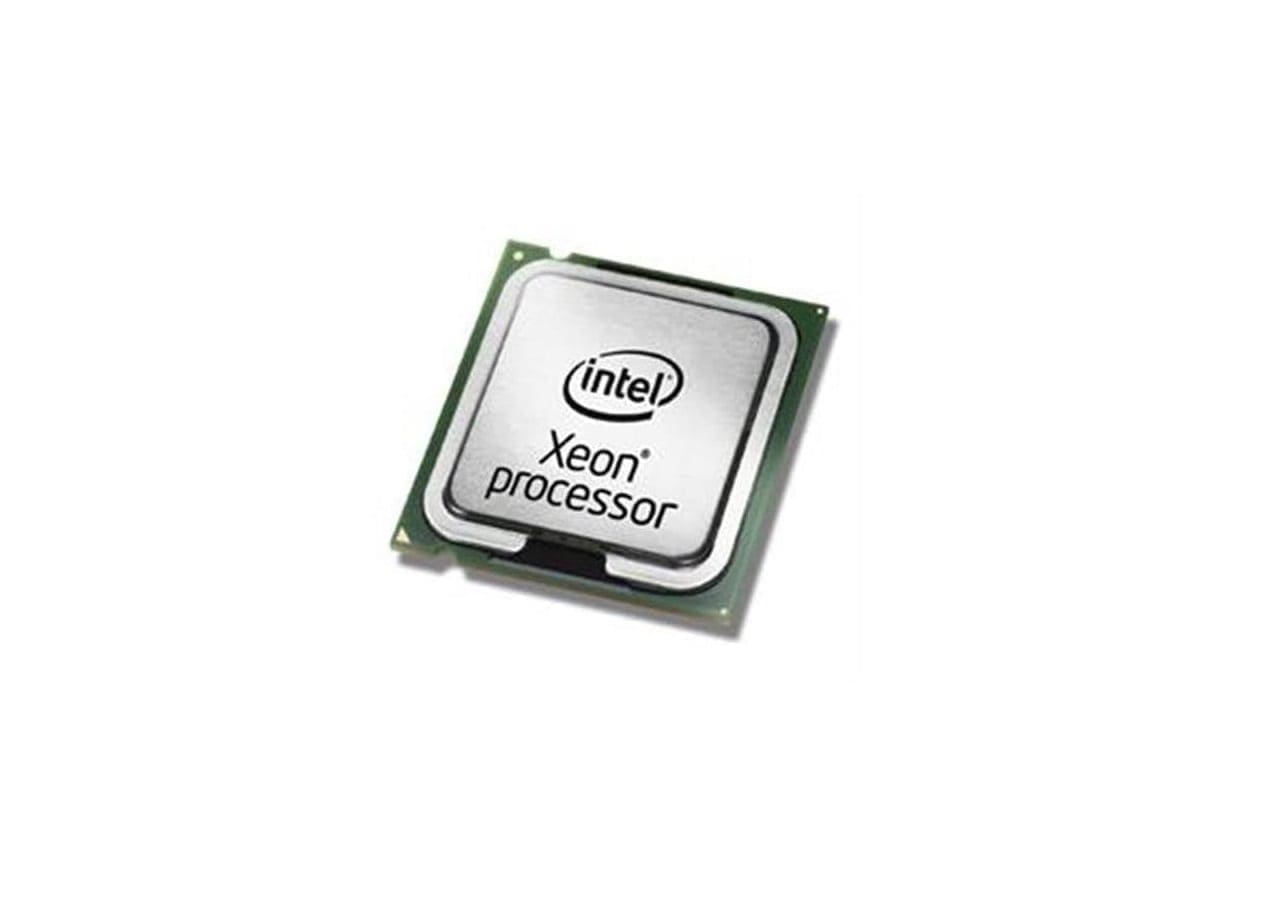

Intel Xeon E-2234 Quad-Core 3.60GHz 8MB L3 Cache Socket FCLGA1151 Processor
Brand Intel
Part No. CM8068404174806
Processor Type Server
Series Xeon E Processor
Core Model Type/ProcNo. E-2234
Processor Code Name Coffee Lake
Core Stepping U0
Manufacturing Technology 14 nm
# of Cores 4
# of Threads 8
Clock Speed 3.60 GHz
Max Turbo Frequency 4.80 GHz
L3 Cache Size 8 MB
Front Side Bus / QuickPath Interconnect 8.00 GT/s
Thermal Power 71 Watts
Max Memory Size 128 GB
Memory Types DDR4-2666
Memory Channels 2
ECC Memory Supported Yes
CPU Socket Type LGA 1151
Max CPU Configuration 1
TJUNCTION 100 °C
Package Size 37.5 mm x 37.5 mm
TCASE 69.3 °C
Intel Quick Sync Video No
Intel InTru 3D Technology No
Intel Clear Video HD Technology No
Intel Clear Video Technology No
Embedded Options Available No
Scalability 1S
PCI Express 3.0
PCI Express Configurations 1 x16
1×8+2×4
2 x8
