CL8068404165100 Technical Specifications

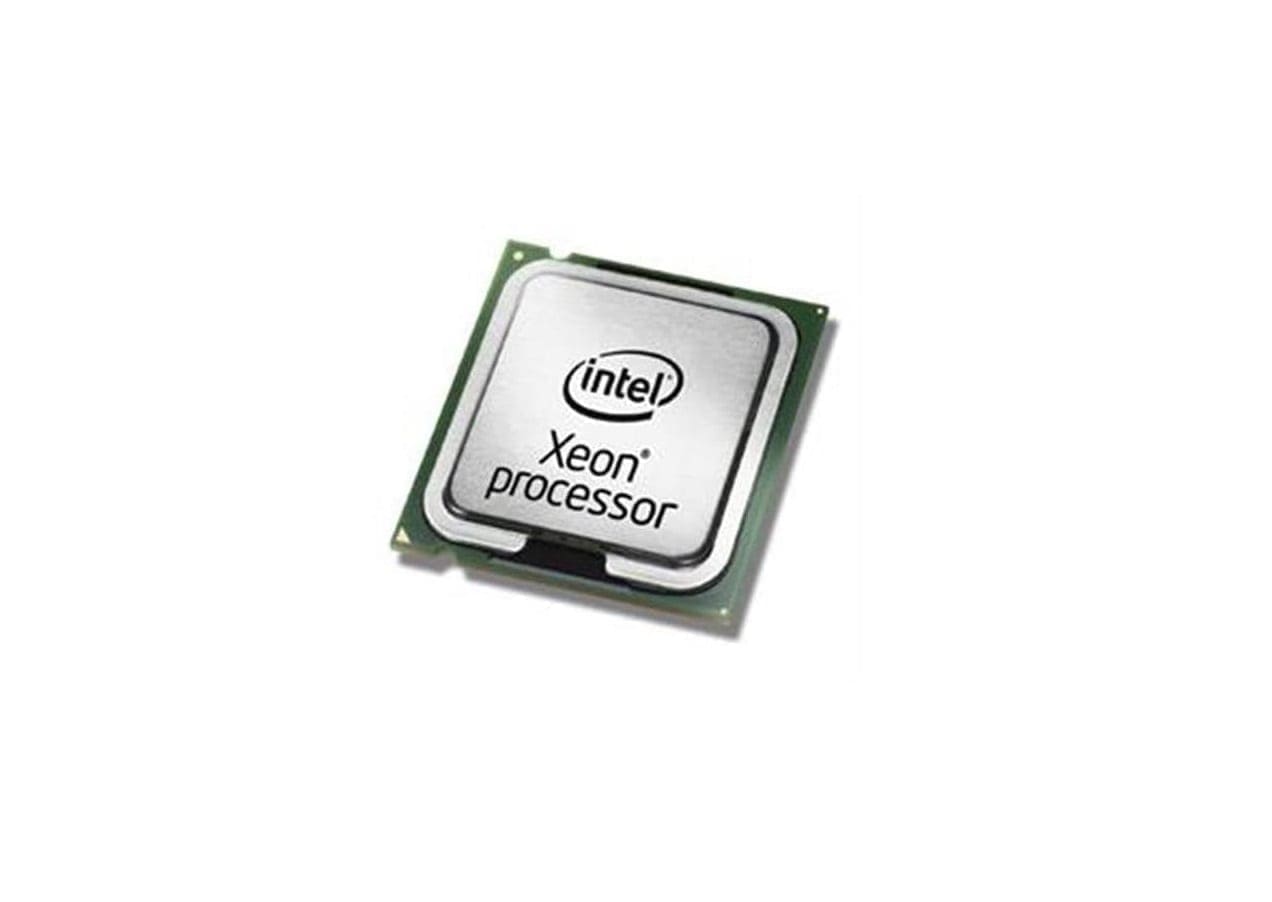

Intel Xeon E-2276ML 6-Core 2.00GHz 12MB L3 Cache 8.00GT/s DMI3 Socket FCBGA1440 Processor
Brand Intel
Part No. CL8068404165100
Processor Type Embedded
Series Xeon E Processor
Core Model Type/ProcNo. E-2276ML
Processor Code Name Coffee Lake
Core Stepping U0
Manufacturing Technology 14 nm
# of Cores 6
# of Threads 12
Clock Speed 2.00 GHz
Max Turbo Frequency 4.20 GHz
L3 Cache Size 12 MB
Front Side Bus / QuickPath Interconnect 8.00 GT/s
Thermal Power 25 Watts
Max Memory Size 64 GB
Memory Types DDR4-2666
Memory Channels 2
ECC Memory Supported Yes
CPU Socket Type BGA1440
Max CPU Configuration 1
TJUNCTION 100 °C
Package Size 42mm x 28mm
Processor Graphics Intel UHD Graphics P630
Graphics Base Frequency 350 MHz
Graphics Max Dynamic Frequency 1.15 GHz
Graphics Video Max Memory 64 GB
Graphics Output eDP/DP/HDMI/DVI
4K Support Yes, at 60Hz
