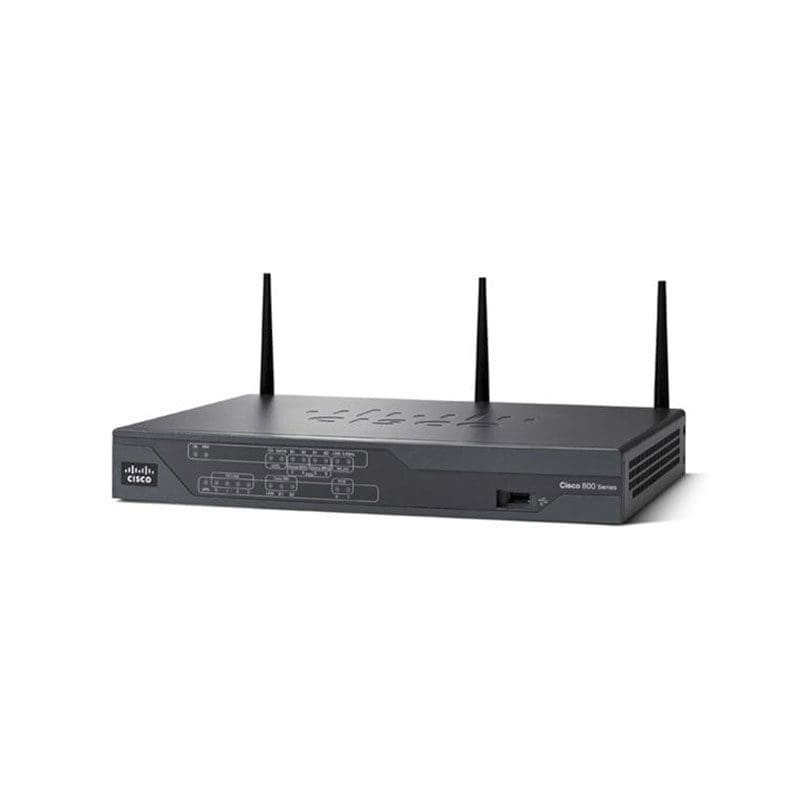

Refurbished CISCO891W-AGN-N-K9 Technical Specifications
Cisco 891 Giga-E Sec RTR W/ 802.11N a/b/g Australia Comp
General Information
Manufacturer Cisco Systems, Inc
Manufacturer Part Number CISCO891W-AGN-N-K9
Brand Name Cisco
Product Series 890
Product Model 891
Product Name 891 Gigabit Ethernet Wireless Security Router
Product Type Wireless Security Router
Wireless Specifications
Wireless LAN Standard IEEE 802.11n
ISM Band Yes
UNII Band Yes
ISM Maximum Frequency 2.40 GHz
UNII Maximum Frequency 5 GHz
Antenna Gain 5 dBi
Antenna Type Omni-directional
Antenna Type Omni-directional Dipole
Antenna Connector RP-TNC Connector
Wireless Transmission Speed 54 Mbit/s
Wireless Security
WEP
WPA
WPA2
Cisco LEAP
PEAP
EAP TLS
EAP-FAST
EAP-SIM
EAP-MD5
EAP-TTLS
TKIP/SSN Encryption
MAC Authentication and Filter
RADIUS Accounting for Wireless Clients
Interfaces/Ports
Fast Ethernet Port Yes
Gigabit Ethernet Port Yes
Number of Network (RJ-45) Ports 8
USB Yes
Management Port Yes
Number of Broadband (RJ-45) Ports 1
Network & Communication
Ethernet Technology Gigabit Ethernet
Management & Protocols
Management
Web Based Management
Command Line Interface (CLI)
Telnet
SNMP v3
DHCP
IEEE 802.1p QoS
IEEE 802.1q VLAN
Cisco Configuration Professional
Cisco Configuration Express
Cisco Configuration Engine support
Cisco AutoInstall
Cisco IOS Embedded Event Manager (EEM)
CiscoWorks
Cisco Security Manager
Security Features
SSL
SSH
DES
3DES
128/192/256 Bit AES
Public-key-infrastructure (PKI)
IPsec Tunnels
L2TP v3
Access control lists (ACLs)
Cisco Easy VPN Client and Server
NAT
RADIUS
TACACS+
DMVPN
Tunnel-less Group Encrypted Transport VPN
Adaptive control technology
Session Initiation Protocol (SIP)
Zone-Based Policy Firewall
VRF-aware Stateful Inspection Routing firewall
Stateful Inspection Transparent Firewall
Advanced Application Inspection and Control
Dynamic and Static Port Security
Firewall Stateful Failover
Content Filtering with Trend Micro
Websense
SmartFilter
Cisco IOS Software black and white lists
Intrusion prevention system (IPS)
Control Plane Policing
Flexible Packet Matching
Network foundation protection
Power Description
Input Voltage 110 V AC
Input Voltage 220 V AC
Miscellaneous
Additional Information
Integrated Dial Backup: V.92 Analog Modem
2×3 MIMO Radio Operation
Antennae Gain: 2 dBi gain @ 2.4 GHz
Antennae Gain: 5 dBi gain @ 5GHz
Autonomous or unified access point
Cisco WCS support for monitoring of autonomous-mode access points
Option to maximize throughput or maximize range
Software-configurable transmit power
Radio roles, including access point, root bridge, nonroot bridge, and workgroup bridge
Wi-Fi Multimedia (WMM) certification
Traffic specifications (TSPEC)
Call Admission Control (CAC) to ensure voice quality is maintained
Unscheduled Automatic Power Save Delivery (UPSD) to reduce latency
Generic routing encapsulation (GRE) and Multipoint GRE (MGRE)
Cisco Express Forwarding
Standard 802.1d Spanning Tree Protocol
IPv4 and IPv6 Multicast
Performance Routing (PfR)
Virtual Route Forwarding (VRF) Lite
Next Hop Resolution Protocol (NHRP)
Bidirectional Forwarding Detection (BFD)
Web Cache Communication Protocol (WCCP)
Routing Protocol:
RIP v1/2
Open Shortest Path First (OSPF)
Border Gateway Protocol (BGP)
Enhanced Interior Gateway Routing Protocol (EIGRP)
Memory:
512 MB/768 MB DRAM
256 MB Flash
Certifications & Standards
FCC
47 CFR Part 15
CISPR22
EN300386
EN55022
EN61000-3-2
EN61000-3-3
ICES-003 Issue 4
KN 22
VCCI
CISPR24
EN300386
EN50082-1
EN50082-1
EN55024
EN61000-6-1
