Refurbished CISCO887M-K9 Technical Specifications

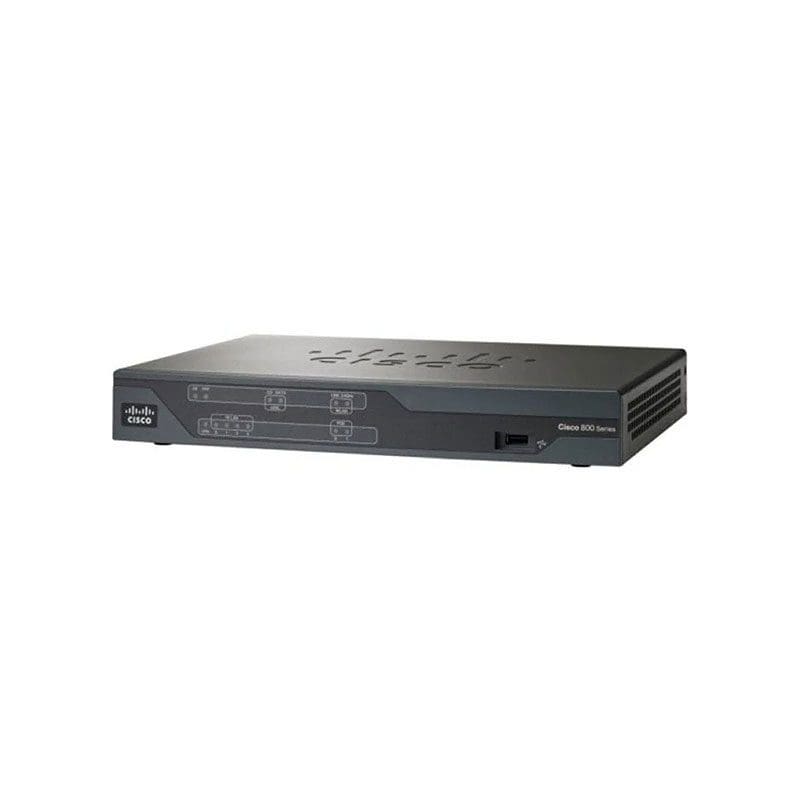

Cisco 887 ADSL2/2+ Annex M Router ISDN/DSL Desktop
Capacity
Type : IPSec VPN tunnels
Value : 20
Dimensions & Weight
Depth : 9.8 in
Height : 1.7 in
Width : 12.8 in
Environmental Parameters
Humidity Range Operating : 10 – 85%
Max Operating Temperature : 104 °F
Min Operating Temperature : 32 °F
Flash Memory
Installed Size : 128 MB
Header
Brand : Cisco
Compatibility : PC
Manufacturer : CISCO DS HARDWARE DIRECT
Series: Cisco 887
Model CISCO887
ADSL2/2+ Annex M
Packaged Quantity : 1
Product Line : Cisco
Interface Provided
Connector Type : 4 pin USB Type A
Type : USB
Type : USB
Connector Type : RJ-45
Interface : Ethernet 10Base-T/100Base-TX
Qty : 4
Type : Network
Type : LAN
Interface : ADSL2+
Type : Modem
Type : WAN
WAN DMZ : WAN
Interface : ISDN BRI ST
Qty : 1
Type : Management
Type : Management
Line Properties
Framing Format : ANSI T1.413
Miscellaneous
Authentication Method : RADIUS, TACACS+
Compliant Standards : AS/NZ 3548 Class B, AS/NZS 60950-1, CS-03, CSA 22.2 No. 60950, EN 60555-2, EN55022 Class B, EN55024, IEC 60950-1, UL 60950-1, VCCI-II
Encryption Algorithm : 128-bit AES, 192-bit AES, 256-bit AES, DES, PKI, SSL, Triple DES
Modem
Digital Signaling Protocol : ADSL2, ADSL2+
Protocols & Specifications : ITU G.992.3 Annex M, ITU G.992.5 Annex M, ITU G.994.1 (G.hs)
Type : ISDN / DSL modem combo
Networking
Compliant Standards : IEEE 802.1D, IEEE 802.1Q
Connectivity Technology : Wired
Data Link Protocol : Ethernet, Fast Ethernet
Features : Access Control List (ACL) support, Auto-uplink (auto MDI/MDI-X), Broadcast Storm Control, Class-Based Weighted Fair Queuing (CBWFQ), DHCP server, DHCP support, DNS proxy, Firewall protection, Intrusion Prevention System (IPS), IPv6 support, Low-latency queuing (LLQ), MAC address filtering, NAT support, Quality of Service (QoS), Stateful Packet Inspection (SPI), VLAN support, VPN support, Weighted Fair Queuing (WFQ)
Form Factor : Desktop
Integrated Switch : 4-port switch
Key Features : Firewall, USB port, VPN support
Network Transport Protocol : IPSec, L2TP, PPPoA, PPPoE
Remote Management Protocol : FTP, HTTP, HTTPS, SNMP 3, SSH, Telnet
Routing Protocol : GRE, HSRP, RIP-1, RIP-2, VRRP
Status Indicators : Port status, Power
Switching Protocol : Ethernet
Type : Router
WAN Ports Qty : 2
OS Provided
Type : Cisco IOS Advanced Security
Power Device
Frequency Required : 50/60 Hz
Nominal Voltage : AC 120/230 V
Power Provided : 60 Watt
Type : External power adapter
RAM
Installed Size : 256 MB
Max Supported Size : 768 MB
Slot Provided
Free Qty : 1
Total Qty : 1
Type : Memory
