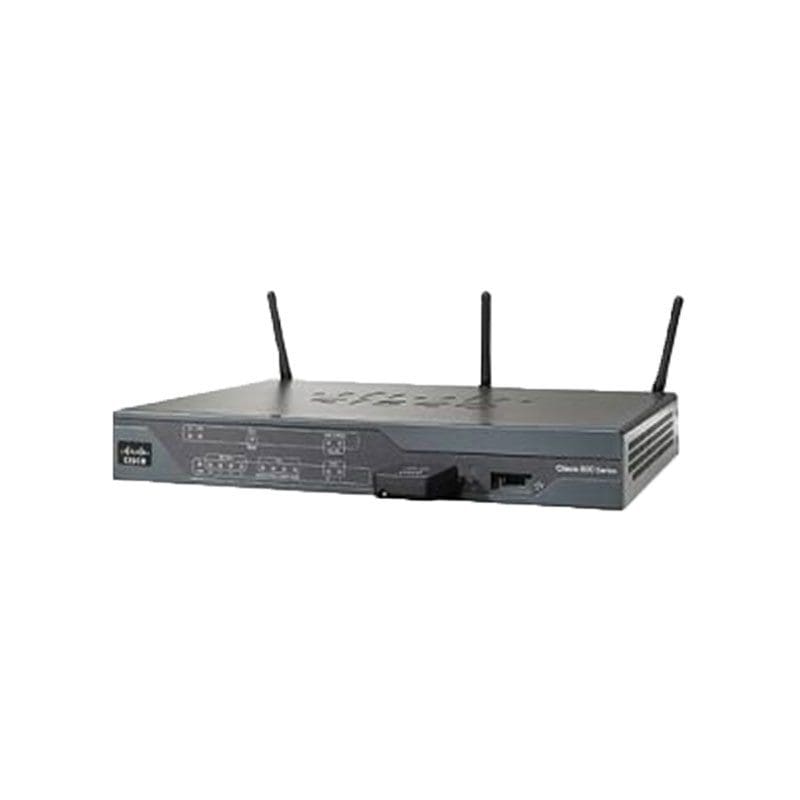

Refurbished CISCO887G-K9 Technical Specifications
Cisco 887 ADSL2/2+ Annex A Router with 3G router DSL/WWAN
Capacity
Type : IPSec VPN tunnels
Value : 20
Dimensions & Weight
Depth : 9.8 in
Height : 1.7 in
Weight : 5.51 lbs
Width : 12.8 in
Environmental Parameters
Humidity Range Operating : 10 – 85% (non-condensing)
Max Operating Temperature : 104 °F
Min Operating Temperature : 32 °F
Flash Memory
Installed Size : 128 MB
Modem
Digital Signaling Protocol : ADSL2, ADSL2+
Protocols & Specifications : ITU G.992.1 (G.DMT) Annex A, ITU G.992.3 Annex A, ITU G.992.5 Annex A
Type : DSL modem / wireless cellular modem 3G WAN
OS Provided
Type : Cisco IOS Advanced Security
RAM
Installed Size : 256 MB
Max Supported Size : 768 MB
Header
Brand : Cisco
Compatibility : PC
Manufacturer : CISCO DS HARDWARE DIRECT
Model : 887 ADSL2/2+ Annex A Router with 3G
Packaged Quantity : 1
Product Line : Cisco 887
Product Series CISCO887
Interface Provided
Connector Type : 4 pin USB Type A
Type : USB
Connector Type : RJ-45
Interface : Ethernet 10Base-T/100Base-TX
Qty : 4 LAN
Type : LAN
Interface : ADSL2+
Type : WAN
Interface : Console
Qty : 1
Type : Management
Miscellaneous
Authentication Method : RADIUS, TACACS+
Compliant Standards : AS/NZ 3548 Class B, CISPR 22, CISPR 24, EN 60555-2, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN300-386, EN50082-1, EN55022, EN55022 Class B, EN55024, FCC CFR47 Part 15, FCC CFR47 Part 15 B, ICES-003, ICES-003 Class B, VCCI V-3
Encryption Algorithm : 128-bit AES, 192-bit AES, 256-bit AES, DES, LEAP, PEAP, PKI, SSL, TKIP, Triple DES
Networking
Compliant Standards : IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x
Connectivity Technology : Wired
Data Link Protocol : Ethernet, Fast Ethernet
Features : Access Control List (ACL) support, Auto-uplink (auto MDI/MDI-X), Bidirectional Forwarding Detection (BFD), Class-Based Weighted Fair Queuing (CBWFQ), Content filtering, DHCP server, DiffServ support, DNS proxy, Dynamic Multipoint VPN (DMVPN), High Availability, IGMP snooping, Intrusion Prevention System (IPS), IPv6 support, Link Fragmentation and Interleaving (LFI), Load balancing, MAC address filtering, NAT support, Quality of Service (QoS), Spanning Tree Protocol (STP) support, Stateful Failover, Stateful Packet Inspection (SPI), Traffic shaping, URL filtering, Virtual Route Forwarding-Lite (VRF-Lite), VLAN support, VPN support, WAN failover, Weighted Fair Queuing (WFQ)
Form Factor : Desktop
Integrated Switch : 4-port switch
Key Features : USB port, VPN support
Network Transport Protocol : DDNS, DHCP, DNS, FTP, IPSec, L2TP, L2TPv3, PPPoA, PPPoE, RSVP
Remote Management Protocol : CLI, HTTP, HTTPS, SNMP 3, SSH, Telnet
Routing Protocol : BGP, EIGRP, GRE, HSRP, NHRP, OSPF, PIM-SM, RIP-1, RIP-2, VRRP
Status Indicators : Port status, Power
Type : Router
Power Device
Frequency Required : 50/60 Hz
Nominal Voltage : AC 120/230 V
Power Provided : 60 Watt
Type : External power adapter
