CISCO886-SEC-K9 Technical Specifications

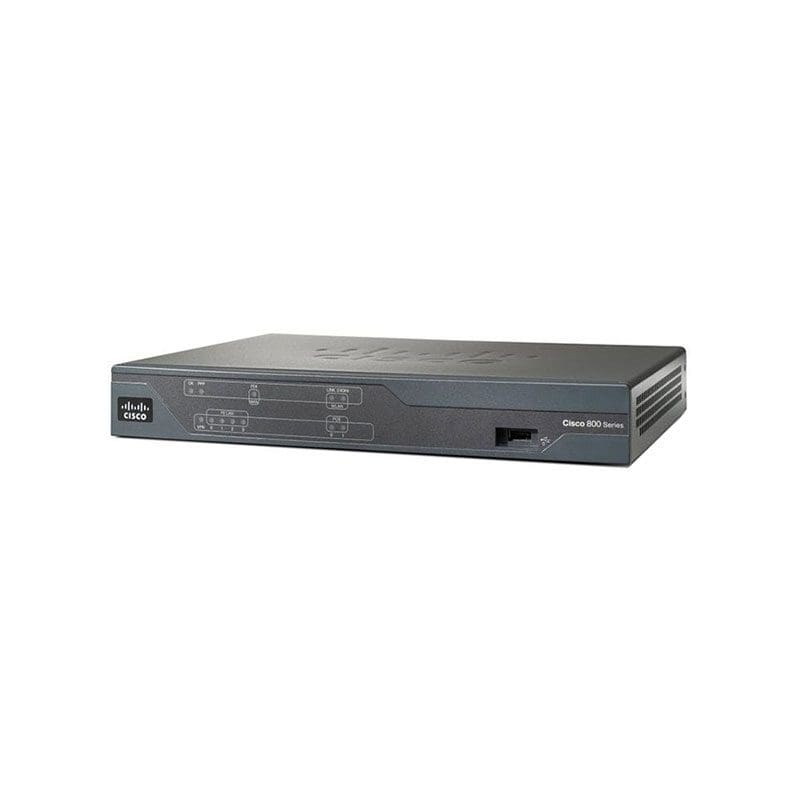

Cisco Router 886 ADSL2/2+ AnnexB Sec Router
Product Number: CISCO886-SEC-K9
Default and maximum flash memory: 128 MB
External power supply
Universal 100 to 240 VAC input; 60W, 12 VDC output
Power
Product power specifications:
AC input voltage: 100 to 240 VAC
Frequency: 50 to 60 Hz
Maximum output power: 60W
Output voltages: 12 VDC
Optional internal PoE with external adapter:
Maximum output power: 80W
External output voltage: 48 VDC
Approvals and compliance
Emissions:
47 CFR Part 15: 2006
CISPR22: 2005
EN300386: V1.3.3: 2005
EN55022: 2006
EN61000-3-2: 2000 [Inc amd 1 and 2]
EN61000-3-3: 1995 [+ amd 1: 2001]
ICES-003 Issue 4: 2004
KN 22: 2005
VCCI: V-3/2006.04
Immunity:
CISPR24: 1997 [+ amd 1 and 2]
EN300386: V1.3.3: 2005
EN50082-1: 1992
EN50082-1: 1997
EN55024: 1998 [+ amd 1 and 2]
EN61000-6-1: 2001
