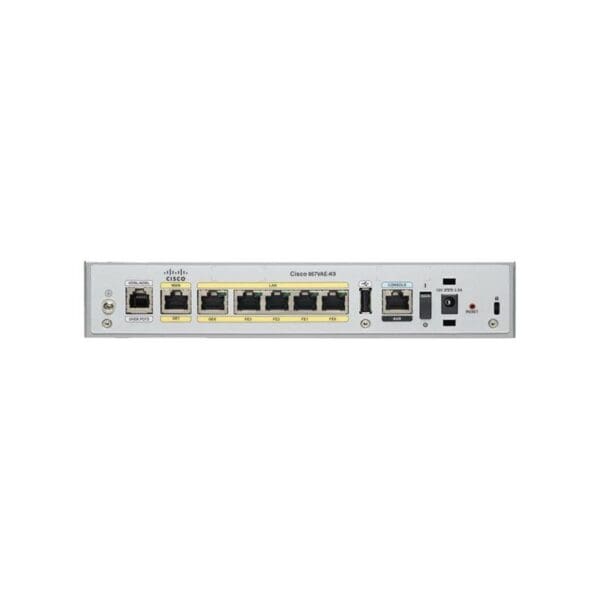

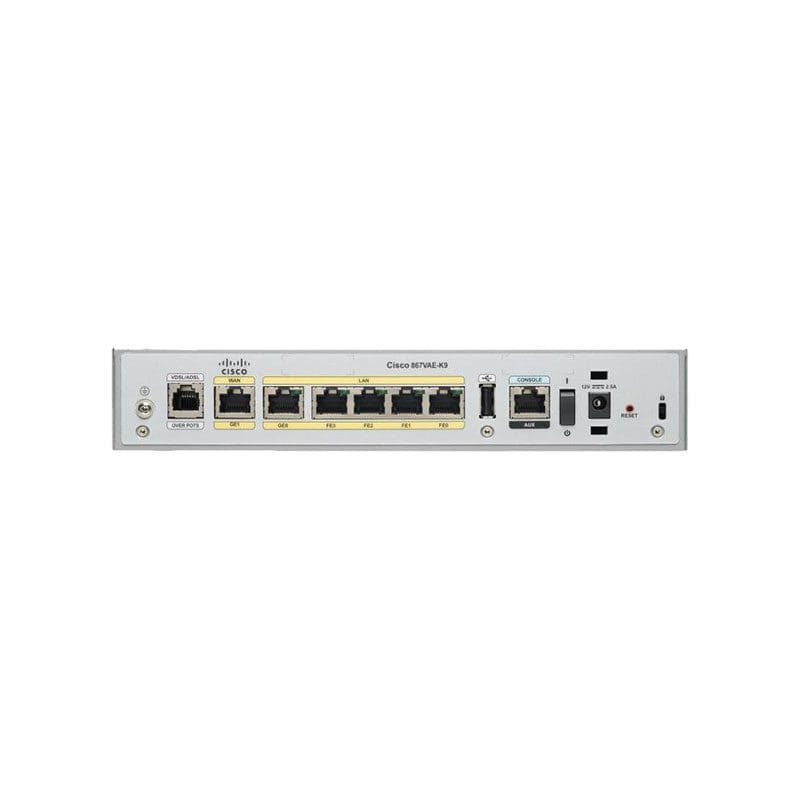

Refurbished CISCO867VAE-K9 Technical Specification
Cisco Secure Router DSL Modem
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco
Model :867VAE Secure
Packaged Quantity :1
RAM
Installed Size :256 megabyte
Max Supported Size :256 megabyte
Flash Memory
Installed Size :56 megabyte, 56 megabyte
Modem
Type :DSL modem
Digital Signaling Protocol :ADSL2+, VDSL2
Protocols & Specifications :ITU G.992.3 Annex A, ITU G.992.3 Annex B, ITU G.992.3 Annex L, ITU G.992.3 Annex M, ITU G.992.5 Annex A, ITU G.992.5 Annex B, ITU G.992.5 Annex M, ITU G.993.2, ITU G.994.1 (G.hs)
Line Properties
Framing Format :ANSI T1.413
Capacity
Capacity :IPSec VPN tunnels: 10
Networking
Type :Router
Form Factor :Desktop, Rack-mountable
Connectivity Technology :Wired
WAN Ports Qty :2
Integrated Switch :5-port switch
Data Link Protocol :Ethernet, Fast Ethernet, Gigabit Ethernet
Routing Protocol :BGP, Policy-based routing (PBR), RIP-1, RIP-2
Network / Transport Protocol :DHCP, DNS, IPSec, PPPoA, PPPoE
Remote Management Protocol :HTTP, HTTPS, SNMP 3, SSH
Key Features :Firewall, USB port
Features :Auto-uplink (auto MDI/MDI-X), Class-Based Weighted Fair Queuing (CBWFQ), DHCP client, DHCP relay, DHCP server, DNS proxy, Firewall protection, IPv6 support, Low-latency queuing (LLQ), MAC address filtering, NetFlow, Port Security, Web Services Management Agent (WSMA), Weighted Fair Queuing (WFQ)
Compliant Standards :IEEE 802.1Q, IEEE 802.3ah
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x ExpressCard
Interface Provided
Interfaces :LAN: 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45, LAN: 4 x 10Base-T/100Base-TX – RJ-45, Management: 1 x console – RJ-45, USB: 1 x 4 pin USB Type A, WAN: 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45, WAN: 1 x ADSL2+, WAN: 1 x VDSL2
OS Provided
Type :Cisco IOS Advanced Security
Power Device
Type :External power adapter
Power Provided :60 watt
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Miscellaneous
Refurbished :Refurbished
Height (Rack Units) :1
Compliant Standards :AS/NZS 3548, CISPR 22, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN 61000-4-3, EN 61000-4-6, EN55022, EN55022 Class B, EN55024, FCC CFR47 Part 15, ICES-003, VCCI V-3
