CISCO3845HSECK9 Technical Specifications

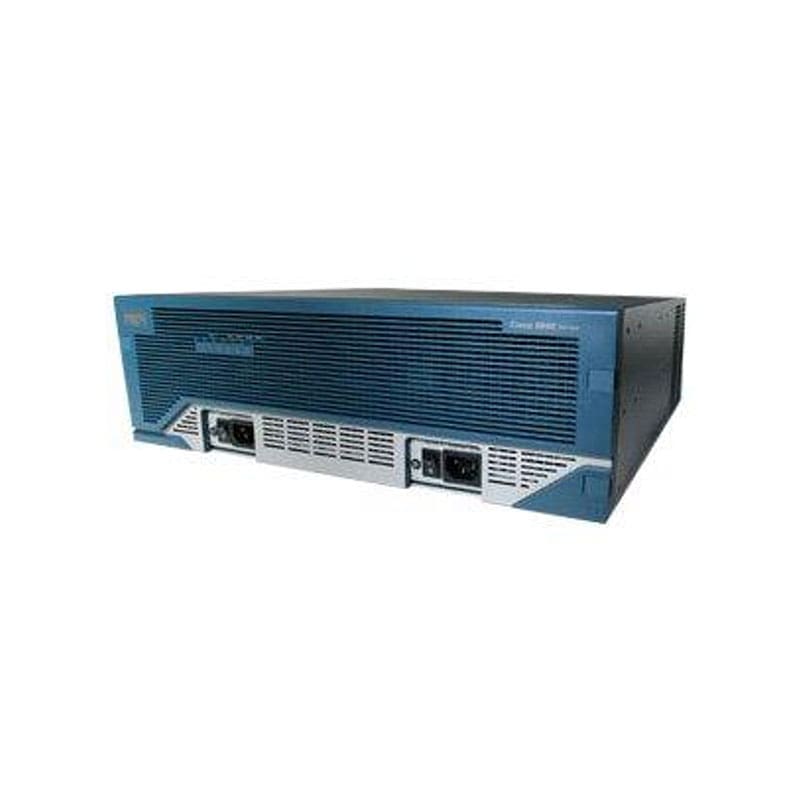

Cisco 3845 Integrated Services Router Chassis
Manufacturer: Cisco
Brand: Cisco
Device Type: Router
Enclosure Type: Desktop modular 3U
Connectivity Technology: Wired
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Authentication Method: Secure Shell v.2 (SSH2)
RAM: 512 MB (installed) / 1 GB (max) – DDR SDRAM
Flash Memory: 128 MB (installed) / 256 MB (max)
Expansion / Connectivity
Interfaces: 2 x 10Base-T/100Base-TX/1000Base-T – RJ-45
Expansion Slots: 4 (total) / 4 (free) x NME-X
Power
Power Device: Internal power supply
Power Redundancy: Yes
OS Provided: Cisco IOS Advanced IP services
Dimensions & Weight
Width: 17.2 in
Depth: 16 in
Height: 5.2 in
Weight: 44.97 lbs
Environmental Parameters
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 5 – 95%
