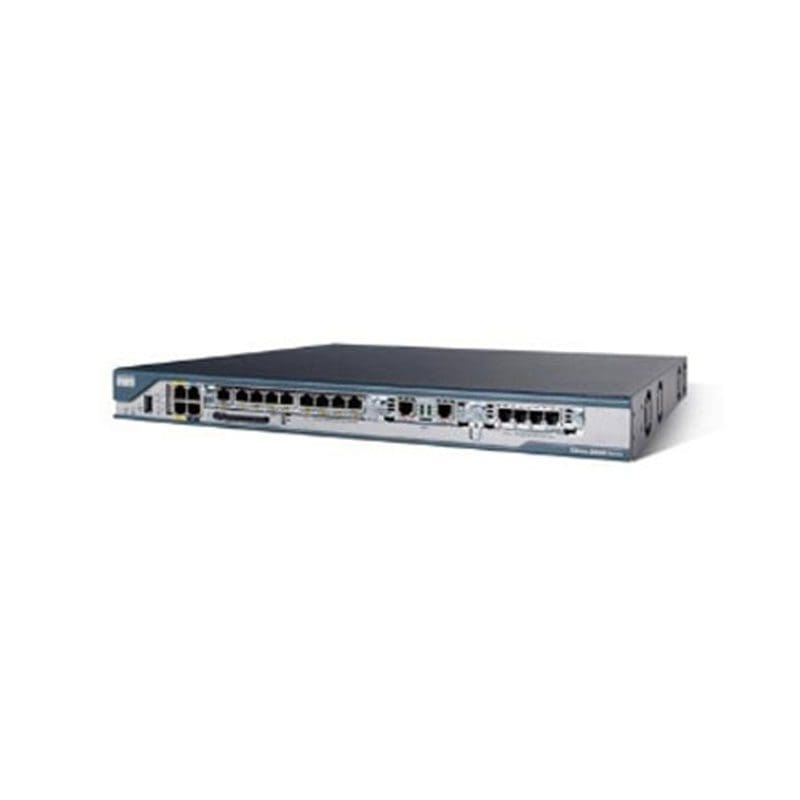

Refurbished CISCO2801-SRST/K9 Technical Specifications
Cisco 2800 Router SRST Voice Bundle
General
Device Type Router
Series Cisco 2800
Model CISCO2801
Enclosure Type Desktop – modular – 1U
Connectivity Technology Wired
Voice Bundle
Data Link Protocol Ethernet, Fast Ethernet
SRST
Network / Transport Protocol IPSec
Remote Management Protocol SNMP 3
Encryption Algorithm DES, Triple DES, AES
Features Firewall protection, hardware encryption, power over Ethernet (PoE), VPN support, MPLS support, URL filtering
Compliant Standards IEEE 802.3af, CISPR 22 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, CSA 22.2 No. 60950, AS/NZ 3548 Class A, JATE, FCC Part 15, ICES-003 Class A, CS-03, EN 61000-6-2
RAM 256 MB (installed) / 384 MB (max)
Flash Memory 64 MB (installed) / 128 MB (max)
Status Indicators Power, link/activity
IP Telephony
Voice Codecs G.711, G.723.1, G.728, G.729, G.729a, G.729ab, G.726
IP Telephony Features Echo cancellation (G.168)
Expansion / Connectivity
Interfaces 2 x 10Base-T/100Base-TX – RJ-45 ¦ USB: 1 x ¦ Management: 1 x console ¦ 1 x auxiliary
Expansion Slots 2 (total) / 2 (free) x HWIC ¦ 2 (total) / 2 (free) x AIM ¦ 2 (total) / 2 (free) x PVDM ¦ 1 (total) / 1 (free) x WIC ¦ 1 (total) / 1 (free) x VIC ¦ 1 memory ¦ 1 CompactFlash
Power
Power Device Internal power supply
Software / System Requirements
OS Provided Cisco IOS SP services
Software Included Cisco Survivable Remote Site Telephony (24-phone license)
OS Required Microsoft Windows 98 Second Edition
Dimensions & Weight
Width 17.5 in
Depth 16.5 in
Height 1.7 in
Weight 13.67 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 – 85%
