CISCO1921T1SECK9RF Technical Specifications

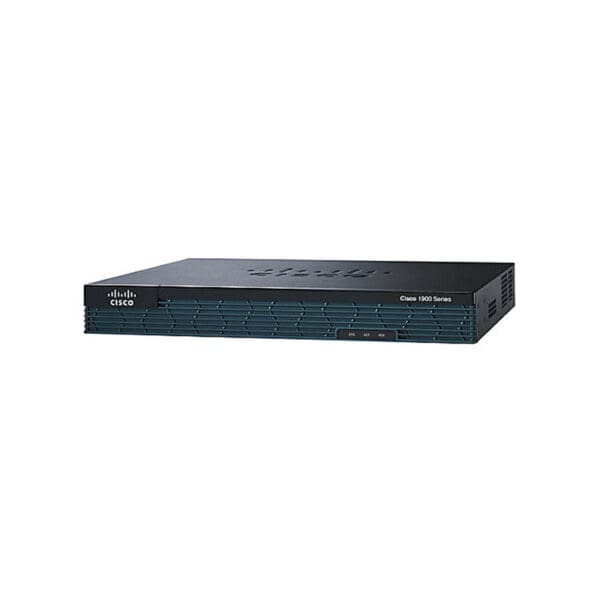

Cisco 1921 SEC T1 Bundle Router DSU/CSU
Device Type Router
Enclosure Type Desktop, rack-mountable – modular – 1U
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Network / Transport Protocol IPSec, L2TPv3
Routing Protocol OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MPLS
Remote Management Protocol SNMP, RMON
Features Firewall protection, VPN support, MPLS support, VLAN support, Syslog support, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Quality of Service (QoS), Web Services Management Agent (WSMA), TR-069 Agent, NetFlow
Software / System Requirements
OS Provided Cisco IOS Universal
Software Included Cisco IOS IP Base, Cisco IOS Security
Dimensions & Weight
Width 13.5 in
Depth 11.5 in
Height 1.7 in
Weight 11.9 lbs
