CFP2-100GBASE-LR4 Technical Specifications

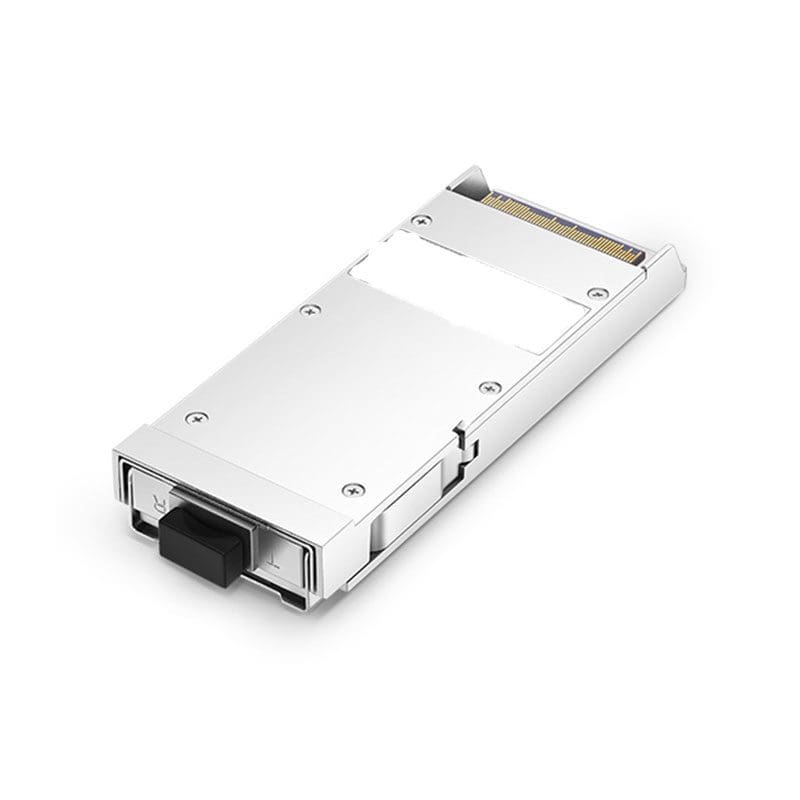

Juniper Networks CFP2 Transceiver Module 100 Gigabit Ethernet
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Packaged Quantity :1
Networking
Type :CFP2 Transceiver Module
Form Factor :Plug-in module
Connectivity Technology :Wired
Cabling Type :Ethernet 100GBase-LR4
Data Link Protocol :100 Gigabit Ethernet
Data Transfer Rate :100 GBps
Features :Digital Optical Monitoring (DOM) support
Connectors (for SD)
Left Connector Type :LC
Interface Provided
Interfaces :1 x Ethernet 100GBase-LR4 – LC
Compatibility
Compatible With :Juniper Networks MX-series MX2010, MX2020, MX240, MX480, MX960 ¦ Juniper Networks PTX Series PTX5000
Standard: 100GBASE-LR4
Standards compliance (Ethernet/OTN Standard, for e.g. 100GBASE-LR4): IEEE 802.3ba-2010
Digital Diagnostic Monitoring: Tx power, Rx power, Bias current, Laser temperature, Case temperature, Power supply voltage
