CD8069504446300 Technical Specifications

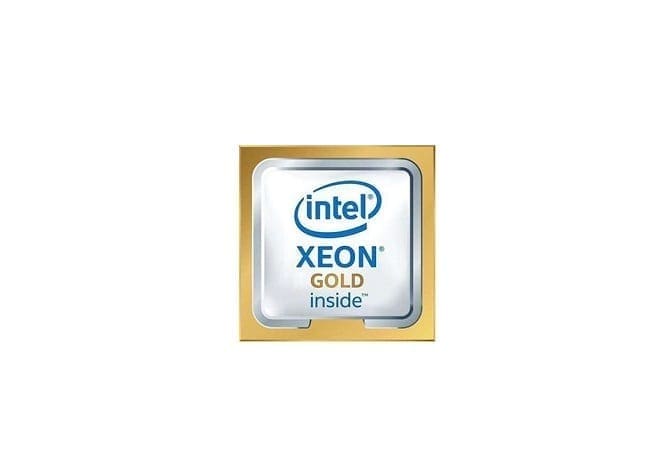

Intel Xeon Gold 5218R 20-Core 2.10GHz 27.5MB Cache Socket FCLGA3647 Processor
Brand Intel
Part No. CD8069504446300
Processor Type Server
Processor Family 2nd Generation Intel Xeon Scalable Processors
Series Xeon Gold Processor
Core Model Type/ProcNo. 5218R
Processor Code Name Cascade Lake
Core Stepping B1
Manufacturing Technology 14 nm
# of Cores 20
# of Threads 40
Clock Speed 2.10 GHz
Max Turbo Frequency 4.00 GHz
L3 Cache Size 27.5 MB
# of UPI Links 2
Thermal Power 125 Watts
Max Memory Size 1 TB
Maximum Memory Speed 2667 MHz
Memory Channels 6
ECC Memory Supported Yes
Intel Optane DC Persistent Memory Supported Yes
CPU Socket Type LGA 3647
Package Size 76.0mm x 56.5mm
TCASE 87 °C
Embedded Options Available No
Scalability 2S
PCI Express 3.0
Max # of PCI Express Lanes 48
Advanced Technologies Enhanced Intel SpeedStep Technology
Intel 64
Intel Deep Learning Boost (Intel DL Boost)
Intel Resource Director Technology (Intel RDT)
Intel Speed Shift Technology
Intel Transactional Synchronization Extensions
Intel Turbo Boost Technology 2.0
Intel Virtualization Technology (VT-x)
Intel Virtualization Technology for Directed I/O (VT-d)
Intel Volume Management Device (VMD)
Intel vPro Platform Eligibility
Intel VT-x with Extended Page Tables (EPT)
# of AVX-512 FMA Units 1
Instruction Set Extensions Intel SSE4.2, Intel AVX, Intel AVX2, Intel AVX-512
Security & Reliability Execute Disable Bit
Intel AES New Instructions
Intel Run Sure Technology
Intel Trusted Execution Technology
Mode-based Execute Control (MBE)
