CD8069504285004 Technical Specifications

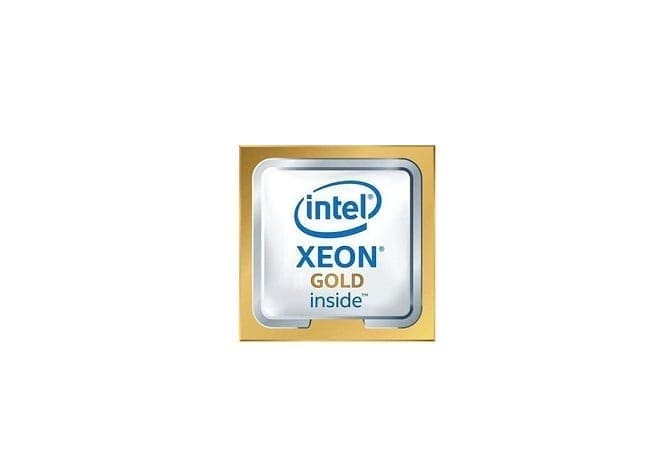

Intel Xeon Gold 6262V 24-Core 1.90GHz 33MB Cache Socket FCLGA3647 Processor
Brand Intel
Part No. CD8069504285004
Processor Type Server
Processor Family 2nd Generation Intel Xeon Scalable Processors
Series Xeon Gold Processor
Core Model Type/ProcNo. 6262V
Processor Code Name Cascade Lake
Manufacturing Technology 14 nm
# of Cores 24
# of Threads 48
Clock Speed 1.90 GHz
Max Turbo Frequency 3.60 GHz
L3 Cache Size 33 MB
Thermal Power 135 Watts
Max Memory Size 1 TB
Memory Types DDR4-2400
Maximum Memory Speed 2400 MHz
Memory Channels 6
ECC Memory Supported Yes
Intel Optane DC Persistent Memory Supported Yes
CPU Socket Type LGA 3647
Package Size 76.0mm x 56.5mm
TCASE 91 °C
Embedded Options Available No
Scalability 4S
PCI Express 3.0
Max # of PCI Express Lanes 48
Advanced Technologies Enhanced Intel SpeedStep Technology
Instruction Set 64-bit
Intel Deep Learning Boost (Intel DL Boost)
Intel Resource Director Technology (Intel RDT)
Intel Speed Shift Technology
Intel Transactional Synchronization Extensions
Intel Turbo Boost Technology 2.0
Intel Virtualization Technology (VT-x)
Intel Virtualization Technology for Directed I/O (VT-d)
Intel Volume Management Device (VMD)
Intel VT-x with Extended Page Tables (EPT)
# of AVX-512 FMA Units 2
Instruction Set Extensions Intel SSE4.2, Intel AVX, Intel AVX2, Intel AVX-512
Security & Reliability Execute Disable Bit
Intel AES New Instructions
Intel Trusted Execution Technology
Mode-based Execute Control (MBE)
