CD8069504283503 Technical Specifications

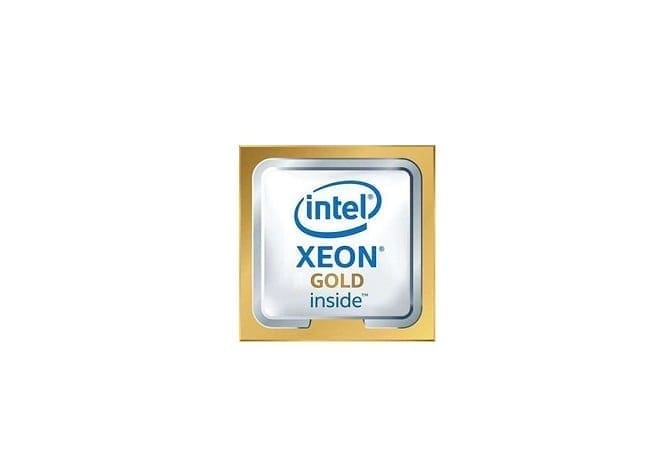

Intel Xeon Gold 6252N 24-Core 2.30GHz 35.75MB Cache Socket FCLGA3647 Processor
Brand Intel
Part No. CD8069504283503
Processor Type Server
Processor Family 2nd Generation Intel Xeon Scalable Processors
Series Xeon Gold Processor
Core Model Type/ProcNo. 6252N
Processor Code Name Cascade Lake
Core Stepping B1
Manufacturing Technology 14 nm
# of Cores 24
# of Threads 48
Clock Speed 2.30 GHz
Max Turbo Frequency 3.60 GHz
L3 Cache Size 35.75 MB
# of UPI Links 3
Thermal Power 150 Watts
Max Memory Size 1 TB
Memory Types DDR4-2933
Maximum Memory Speed 2933 MHz
Memory Channels 6
ECC Memory Supported Yes
Intel Optane DC Persistent Memory Supported Yes
CPU Socket Type LGA 3647
Package Size 76.0mm x 56.5mm
TCASE 74 °C
Embedded Options Available No
Scalability 4S
PCI Express 3.0
Max # of PCI Express Lanes 48
Advanced Technologies Enhanced Intel SpeedStep Technology
Intel 64
Intel Deep Learning Boost (Intel DL Boost)
Intel Hyper-Threading Technology
Intel Resource Director Technology (Intel RDT)
Intel Speed Select Technology – Base Frequency
Intel Speed Shift Technology
Intel Turbo Boost Technology 2.0
Intel Virtualization Technology (VT-x)
Intel Virtualization Technology for Directed I/O (VT-d)
Intel Volume Management Device (VMD)
Intel vPro Platform Eligibility
Intel VT-x with Extended Page Tables (EPT)
