CD8069504283204 Technical Specifications

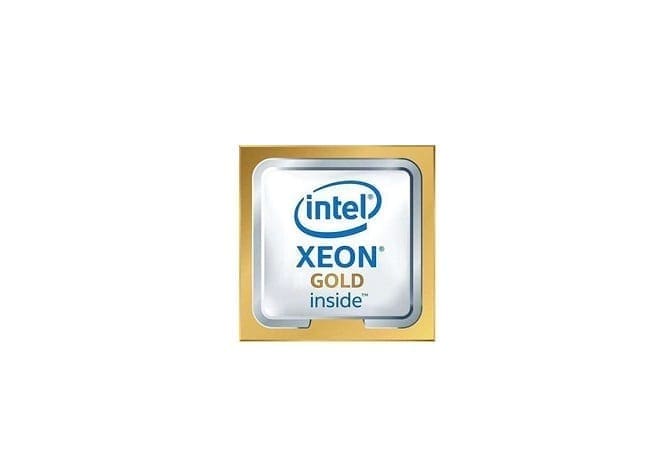

Intel Xeon Gold 5218T 16-Core 2.10GHz 22MB Cache Socket FCLGA3647 Processor
Brand Intel
Part No. CD8069504283204
Processor Type Server
Processor Family 2nd Generation Intel Xeon Scalable Processors
Series Xeon Gold Processor
Core Model Type/ProcNo. 5218T
Processor Code Name Cascade Lake
Manufacturing Technology 14 nm
# of Cores 16
# of Threads 32
Clock Speed 2.10 GHz
Max Turbo Frequency 3.80 GHz
L2 Cache Size 22 MB
# of UPI Links 2
Thermal Power 105 Watts
Max Memory Size 1 TB
Memory Types DDR4-2667
Maximum Memory Speed 2667 MHz
Memory Channels 6
ECC Memory Supported Yes
Intel Optane DC Persistent Memory Supported Yes
TJUNCTION 93 °C
Package Size 76.0mm x 56.5mm
Embedded Options Available Yes
Advanced Technologies Enhanced Intel SpeedStep Technology
Instruction Set 64-bit
Intel 64
Intel Deep Learning Boost (Intel DL Boost)
Intel Resource Director Technology (Intel RDT)
Intel Speed Shift Technology
Intel Turbo Boost Technology 2.0
Intel Virtualization Technology (VT-x)
Intel Virtualization Technology for Directed I/O (VT-d)
Intel Volume Management Device (VMD)
Intel vPro Platform Eligibility
