CD8069504248601 Technical Specifications

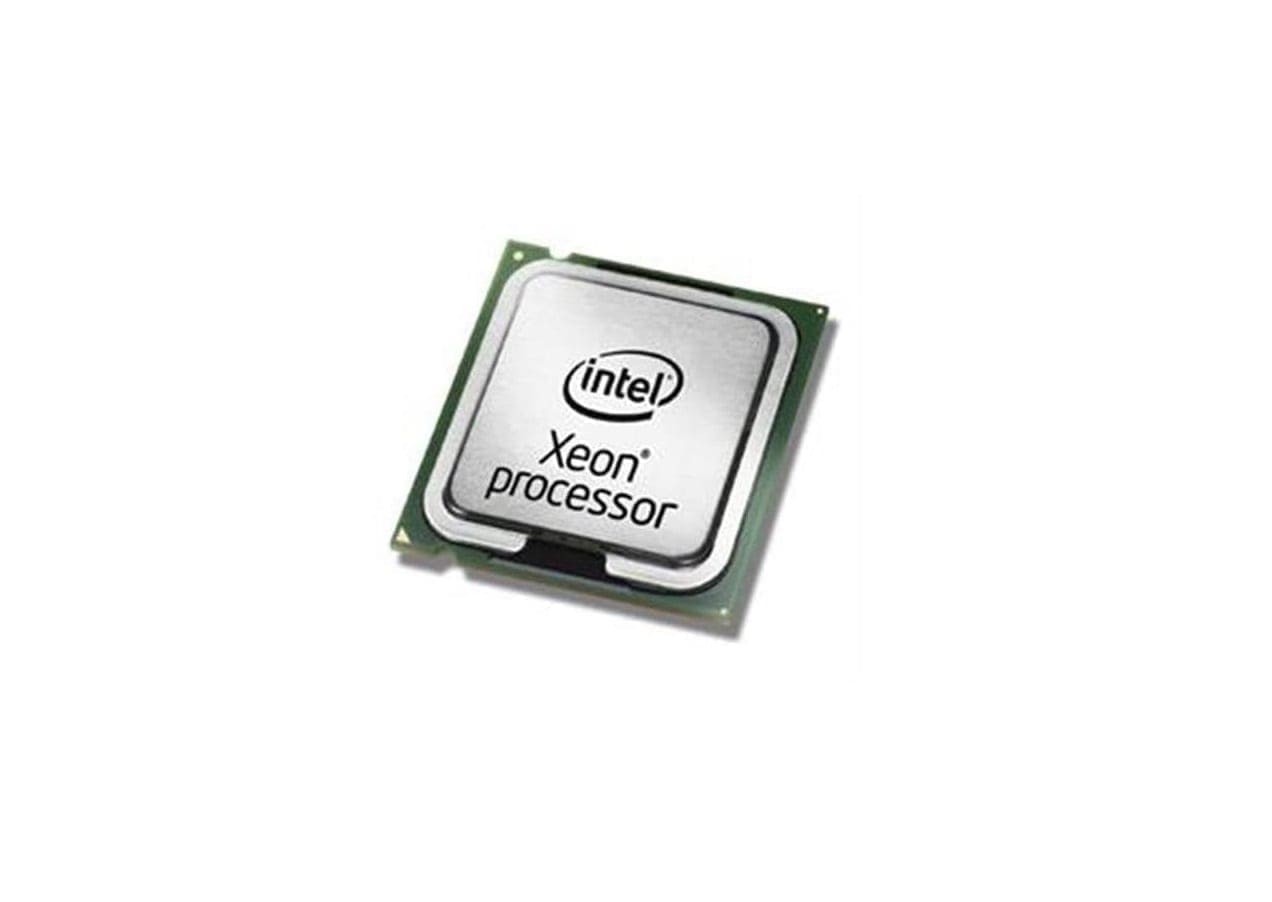

Intel Xeon W-3265M 24-Core 2.70GHz 33MB L3 Cache Socket FCLGA3647 Processor
Part No. CD8069504248601
Processor Type Workstation
Series Xeon W Processor
Core Model Type/ProcNo. W-3265M
Processor Code Name Cascade Lake
Manufacturing Technology 14 nm
# of Cores 24
# of Threads 48
Clock Speed 2.70 GHz
Max Turbo Frequency 4.40 GHz
L3 Cache Size 33 MB
Front Side Bus / QuickPath Interconnect 8.00 GT/s
# of QPI Links 0
Intel Turbo Boost Max Technology 3.0 Frequency 4.60 GHz
Thermal Power 205 Watts
Max Memory Size 2 TB
Memory Types DDR4-2933
Maximum Memory Speed 2933 MHz
Memory Channels 6
ECC Memory Supported Yes
Intel Optane DC Persistent Memory Supported No
CPU Socket Type LGA 3647
Package Size 76.0mm x 56.5mm
TCASE 78 °C
Embedded Options Available No
Scalability 1S
PCI Express 3.0
Max # of PCI Express Lanes 64
