CD8069504214202 Technical Specifications

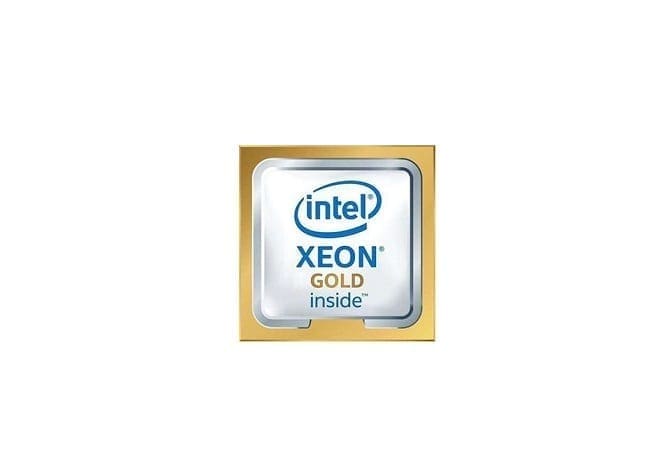

Intel Xeon Gold 5215L 12-Core 2.50GHz 14MB Cache Socket FCLGA3647 Processor
Brand Intel
Part No. CD8069504214202
Processor Type Server
Processor Family 2nd Generation Intel Xeon Scalable Processors
Series Xeon Gold Processor
Core Model Type/ProcNo. 5215L
Processor Code Name Cascade Lake
Core Stepping L0
Manufacturing Technology 14 nm
# of Cores 10
# of Threads 20
Clock Speed 2.50 GHz
Max Turbo Frequency 3.40 GHz
L3 Cache Size 13.75 MB
# of UPI Links 2
Thermal Power 85 Watts
Max Memory Size 4.5 TB
Memory Types DDR4-2667
Maximum Memory Speed 2667 MHz
Memory Channels 6
ECC Memory Supported Yes
Intel Optane DC Persistent Memory Supported Yes
CPU Socket Type LGA 3647
Package Size 76.0mm x 56.5mm
TCASE 77 °C
Embedded Options Available No
Scalability 4S
PCI Express 3.0
Max # of PCI Express Lanes 48
Advanced Technologies Intel 64
Intel Deep Learning Boost (Intel DL Boost)
Intel Hyper-Threading Technology
Intel Resource Director Technology (Intel RDT)
Intel Speed Shift Technology
Intel Transactional Synchronization Extensions
Intel Turbo Boost Technology 2.0
Intel Virtualization Technology (VT-x)
Intel Virtualization Technology for Directed I/O (VT-d)
Intel Volume Management Device (VMD)
Intel vPro Platform Eligibility
Intel VT-x with Extended Page Tables (EPT)
