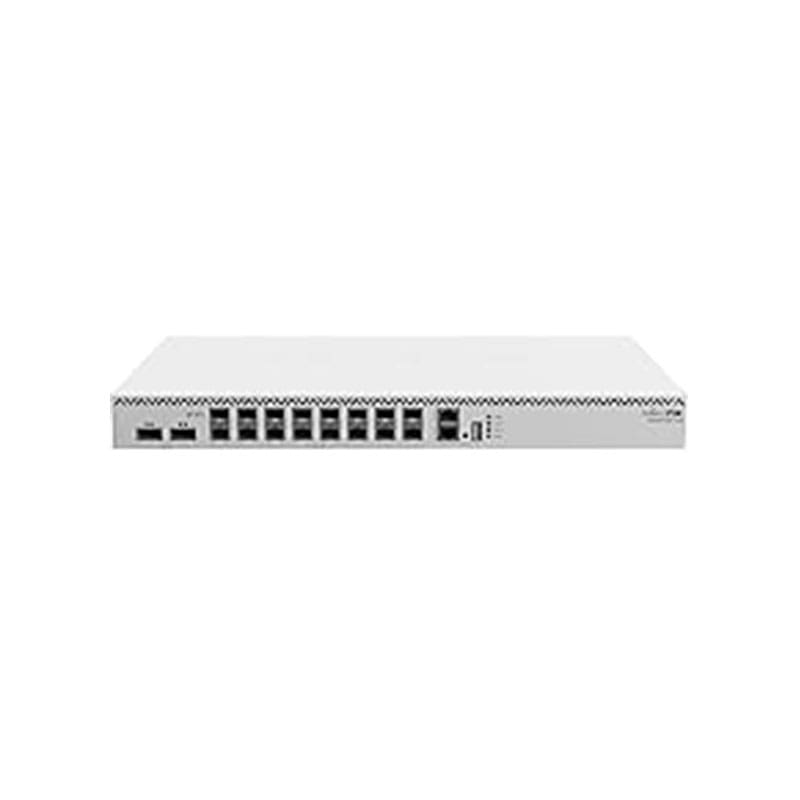

CCR2216-1G-12XS-2XQ Technical Specification
MikroTik Cloud Core Router 2216 Gigabit Ethernet 16GB of RAM Router
Manufacturer: MikroTik
Brand: MikroTik
CPU: AL73400 2 GHz
CPU architecture: ARM 64bit
CPU core count: 16
Size of RAM: 16 GB
RAM type: DDR4
Storage: 128 MB, NAND
Number of 1G Ethernet ports: 1
Number of 25G SFP28 ports: 12
Number of 100G QSFP28 ports: 2
Number of M.2 slots: 2
Operating system: RouterOS (License level 6)
Switch chip model: 98DX8525
Switch connection to CPU: 4×25 Gbps
Dimensions: 443 x 367 x 44 mm
17.44″ x 14.44″ x 1.73″
Operating temperature: -20°C to +60°C
Powering
Number of AC inputs: 2
AC input range: 100-240 V
Power adapter nominal voltage: 12 V
Power adapter nominal current: 12.5 A
Max power consumption (without attachments): 80 W
Max power consumption: 121 W
