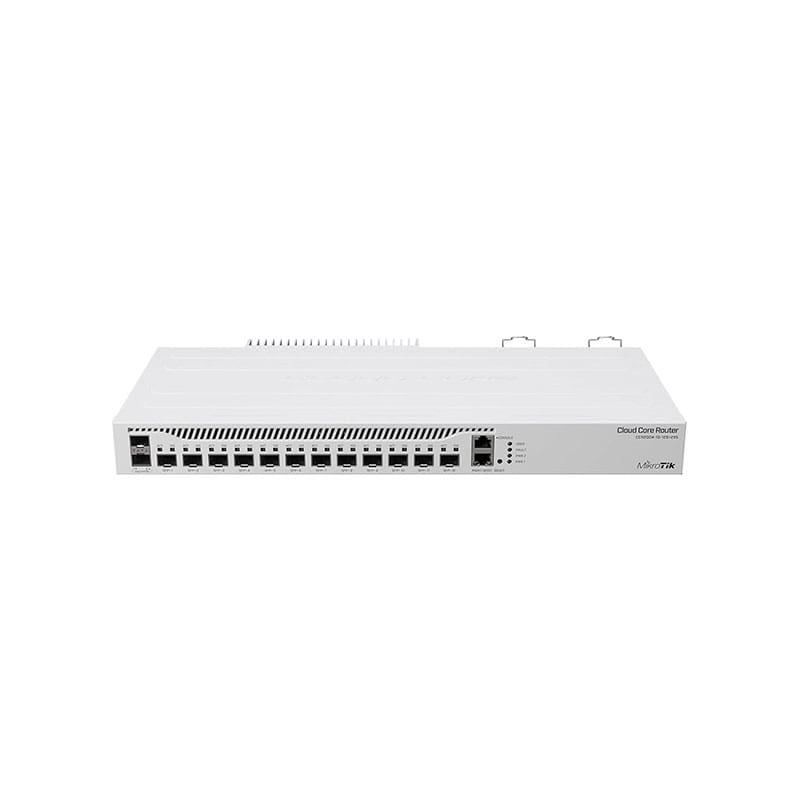

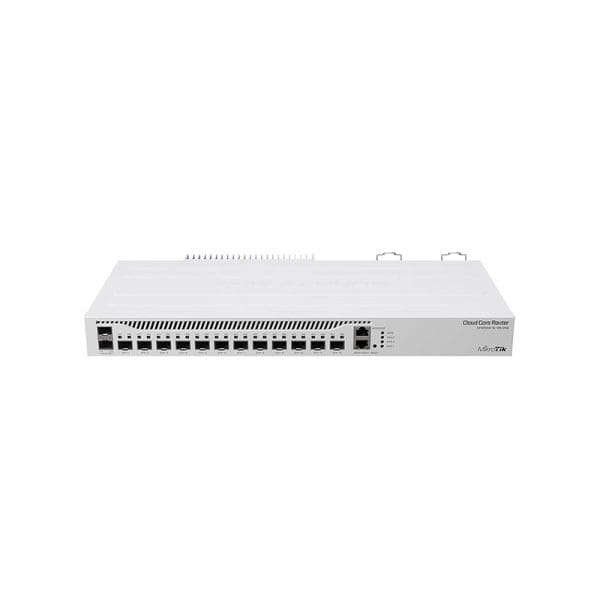

CCR2004-1G-12S+2XS Technical Specifications
MikroTik Router 12x SFP+, 2x SFP28, 1x RJ45 1000Mb/s
Manufacture : MikroTik
Manufacture Part Number :
CPU Annapurna Alpine AL32400 Cortex A57
Number of processor cores 4x
Clocking 1700 MHz
Memory RAM RouterOS v6: 1792 MB ECC
RouterOS v7: 4 GB ECC
Type of RAM 4GB DDR4
Built-in memory 128 MB
Type of built-in memory NAND
Gigabit Ethernet ports 1x 1 Gb/s
SFP+ slots 12x 10 Gb/s
SFP28 slots 2x 25 Gb/s
Input voltage range 100 – 240 V AC
Power supplies 2x
Max. power consumption 49W
Dimensions 443 x 224 x 44 mm
Permissible operating temperature From -20 to 60 degrees C
Operating system RouterOS Level 6
