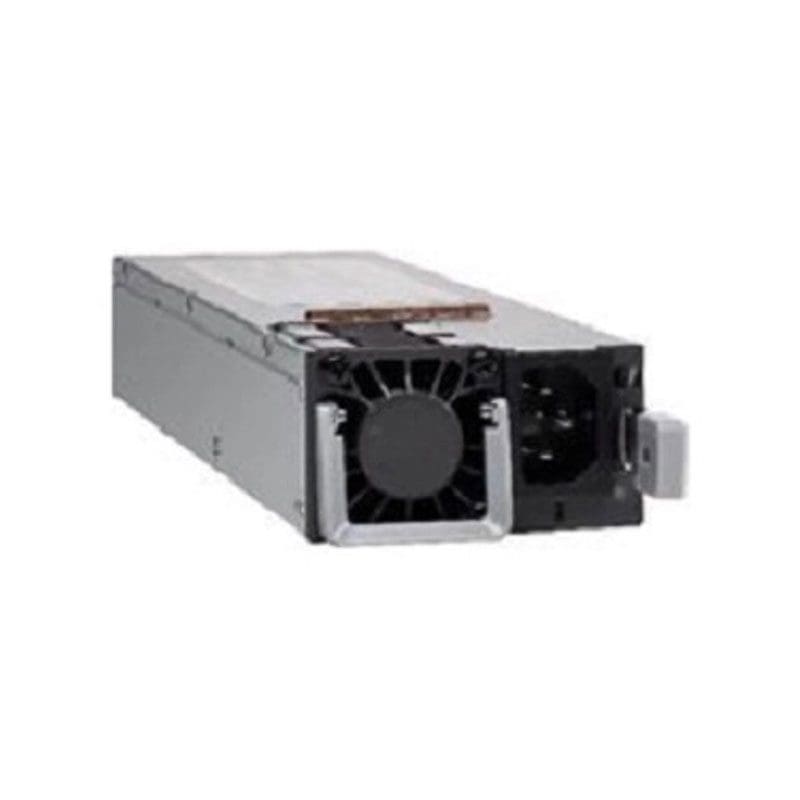

C9K-PWR-1600WDC-R Technical Specifications
Cisco Config 4 – power supply – hot-plug / redundant 1600 Watt
Power supply feature: C9K-PWR-1600WDC-R
Cisco Catalyst
Power max rating: 1600 Watt
Input-voltage range and frequency: DC -40VDC to -72VDC
Power supply efficiency: 92% (Typ)
DC 40A max at -48VDC (when full loading)
DC Power Supply
Output ratings: 12Vmain at 133A, 12Vsb at 3A
Output holdup time: AC = 5 ms minimum for system
Power-supply input receptacles: Amphenol C10-638976-000
Power cord rating: DC 70A
C9500
